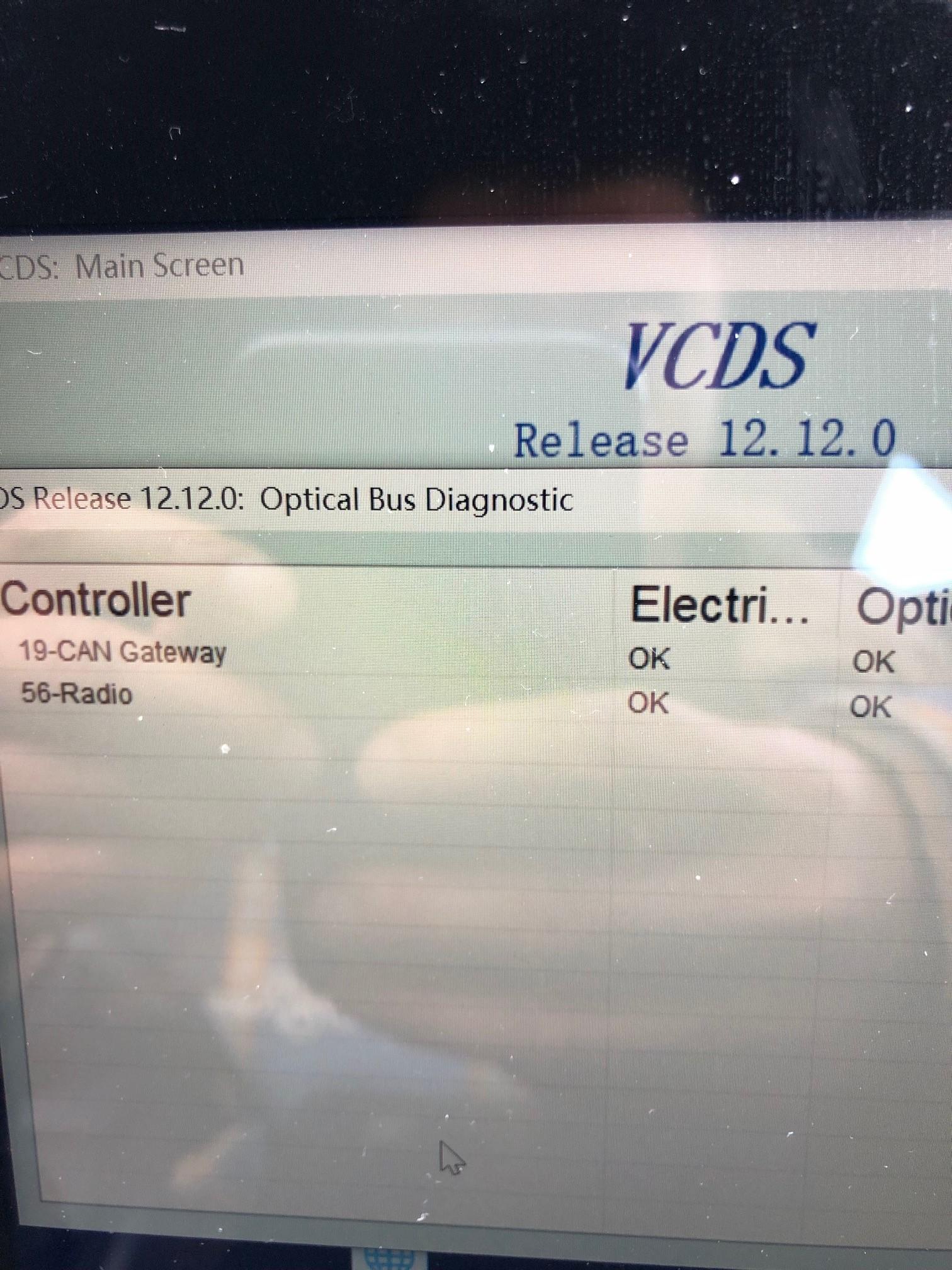

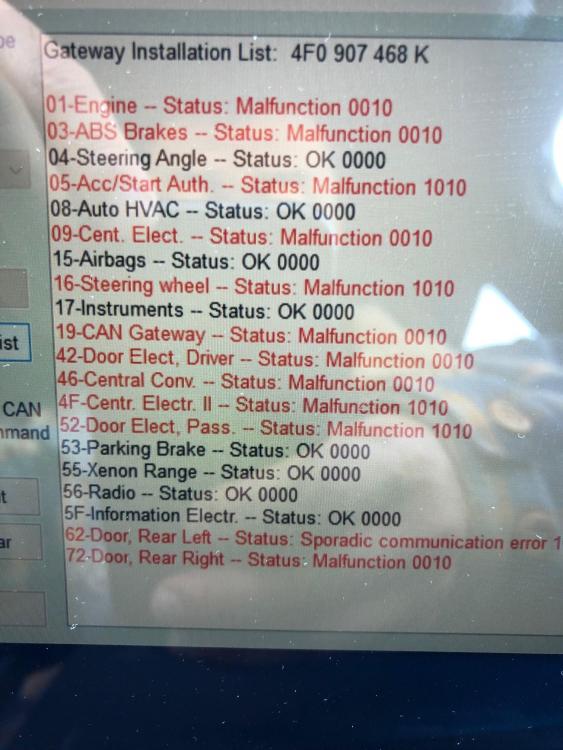

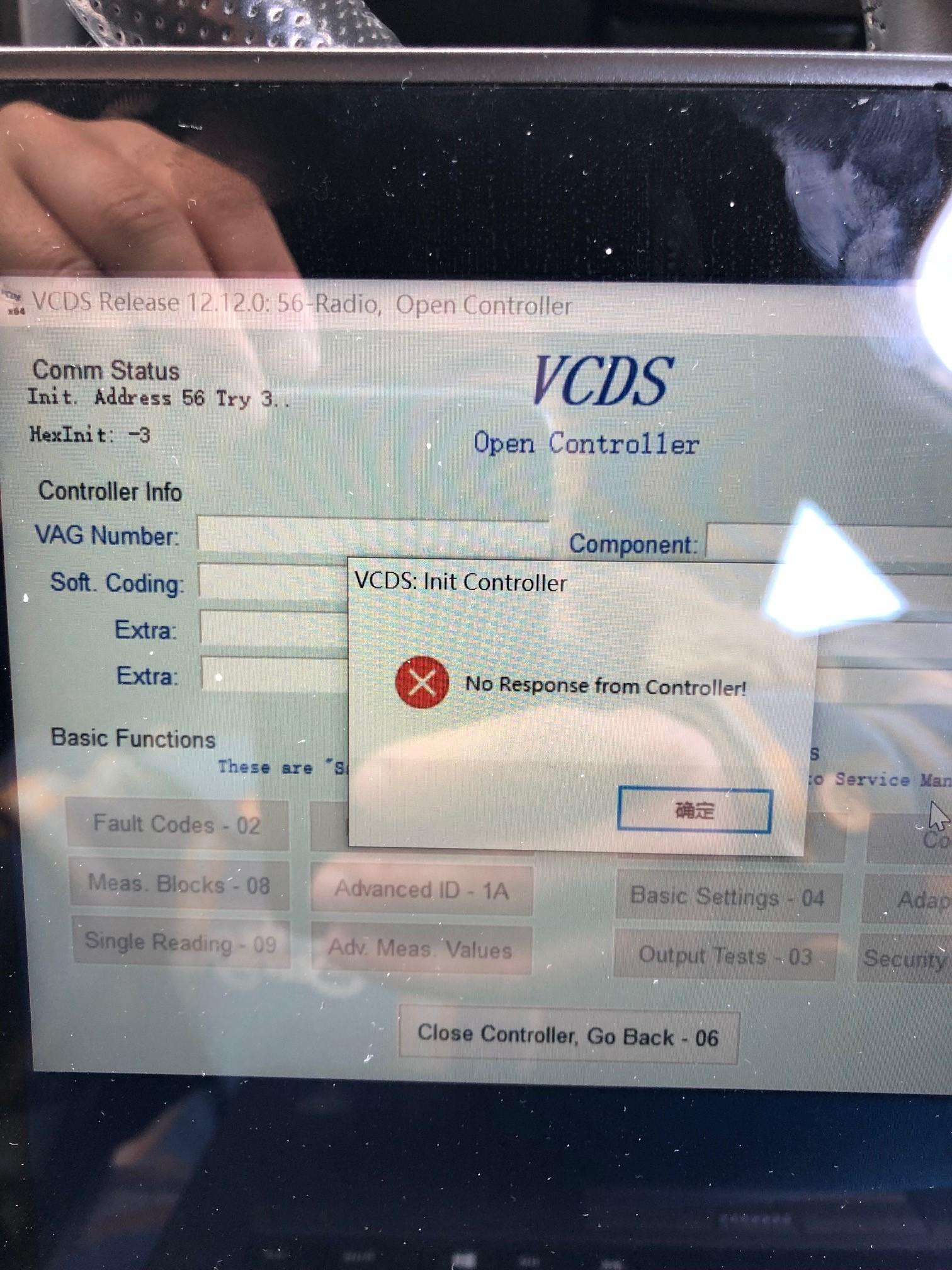

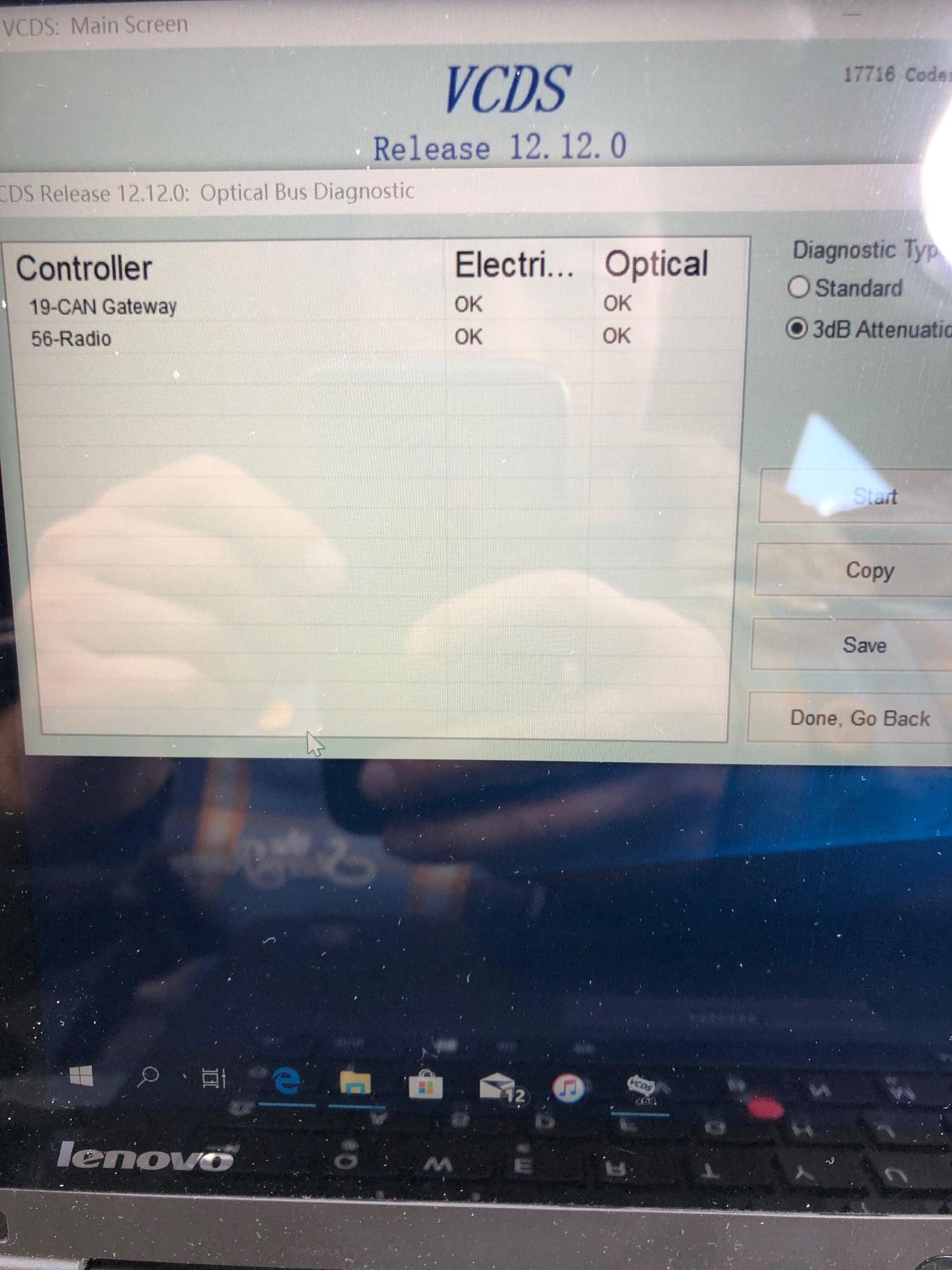

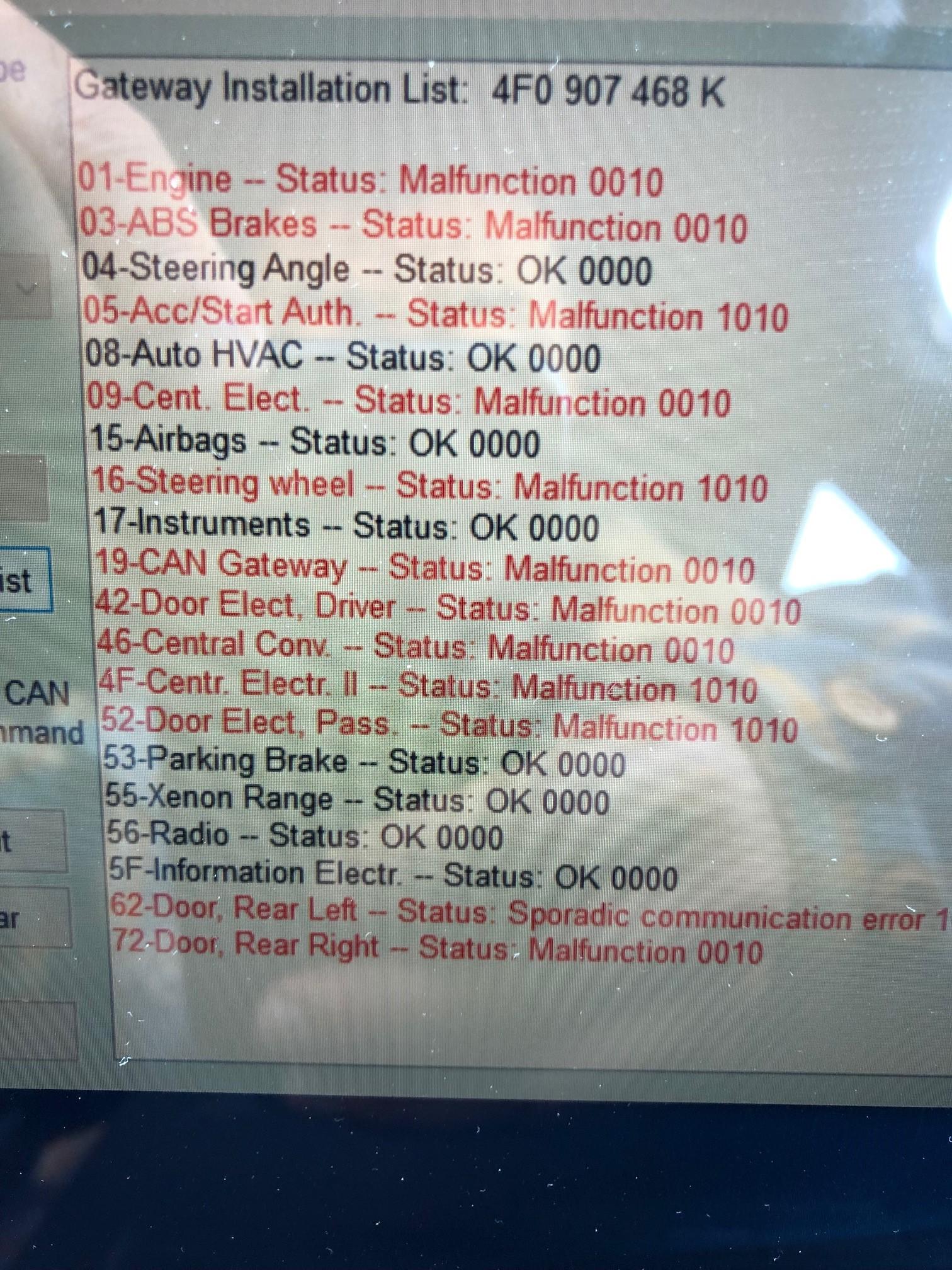

tonyfly Posted June 16, 2019 Share Posted June 16, 2019 Dear all, I have got a 2009 C6 saloon LCI facelift with a cd unit which has two sd card slots in the glove box. After the MMI dead this unit still eject and take CD in which confused me. I don’t think the car had sat nav as before the mmi dead it shows sat nav unavailable or something similar. Also the Bluetooth wasn’t working when I got it. I have no idea it was faulty or not fitted by Audi as in 2009 among the first few facelift seems got basic MMI? Not sure... My friend borrowed it from me for one day then upon return the mmi dead and so is the radio. The control buttons are all non illuminated. I’m not sure it was my friends fault or not as a while ago I had problems powering the radio up but somehow it came back on just fine so I did not bother. This time it has completly dead, I tried to force reboot it by long pressing the three buttons but no joy. Pulled all the fuses out and back in, still dead. In the boot there is nothing to the left, only some fuses to the right. Help needed please. Please see the attached scan results, did an Optical Bus scan and to my suprise both modoules came back ok....... However when I tried to get into moudle 56 there is no response.. Sorry if the scan results is too long. Please let me know if I can cut some unrelevant info out. Many thanks. VCDS Version: Release 12.12.0 (x64) Data version: 20130910 Sunday,16,June,2019,12:26:19:17052 Chassis Type: 4F (4F0) Scan: 01 03 05 08 09 15 16 17 19 42 46 4F 52 53 55 56 5F 62 72 VIN: WAUZZZ4F19N041461 Mileage: 151860km/94361miles 01-Engine -- Status: Malfunction 0010 03-ABS Brakes -- Status: Malfunction 0010 04-Steering Angle -- Status: OK 0000 05-Acc/Start Auth. -- Status: Malfunction 1010 08-Auto HVAC -- Status: OK 0000 09-Cent. Elect. -- Status: Malfunction 0010 15-Airbags -- Status: OK 0000 16-Steering wheel -- Status: Malfunction 1010 17-Instruments -- Status: OK 0000 19-CAN Gateway -- Status: Malfunction 0010 42-Door Elect, Driver -- Status: Malfunction 0010 46-Central Conv. -- Status: Malfunction 0010 4F-Centr. Electr. II -- Status: Malfunction 1010 52-Door Elect, Pass. -- Status: Malfunction 1010 53-Parking Brake -- Status: OK 0000 55-Xenon Range -- Status: OK 0000 56-Radio -- Status: OK 0000 5F-Information Electr. -- Status: OK 0000 62-Door, Rear Left -- Status: Sporadic communication error 1000 72-Door, Rear Right -- Status: Malfunction 0010 ------------------------------------------------------------------------------- Address 01: Engine (J623-CAGB) Labels: 03L-906-022-CAG.clb Part No SW: 03L 906 022 SB HW: 03L 906 022 FG Component: R4 2.0l TDI H01 9978 Revision: 11H01--- Serial number: Coding: 0105002C18072118 Shop #: WSC 53057 001 1048576 ASAM Dataset: EV_ECM20TDI03L906022SB A01007 ROD: EV_ECM20TDI03L906019AE.rod VCID: 77FDF8D6CE8FD8A6A59-8022 1 Fault Found: 4699 - Function Restriction due to Faults in Other Modules U1113 00 [032] - - Intermittent - Not Confirmed - Tested Since Memory Clear Freeze Frame: Fault Status: 00000001 Fault Priority: 6 Fault Frequency: 6 Mileage: 151848 km Date: 2008.08.13 Time: 00:01:30 Readiness: 0 0 0 0 0 ------------------------------------------------------------------------------- Address 03: ABS Brakes Labels: 4F0-910-517.lbl Part No SW: 4F0 910 517 AK HW: 4F0 614 517 AT Component: ESP8 front H03 0060 Revision: 00000000 Serial number: 00000000000000 Coding: 0020855 Shop #: WSC 02325 785 00200 VCID: 6DD1DABE74D362764F5-8038 1 Fault Found: 01826 - Sensor for Steering Angle (G85); Supply Voltage Terminal 30 000 - - - Intermittent Freeze Frame: Fault Status: 00100000 Fault Priority: 3 Fault Frequency: 5 Reset counter: 99 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 11:51:22 Freeze Frame: Hex Value: 0x00C0 Hex Value: 0x4282 Hex Value: 0x0024 Hex Value: 0x0195 Hex Value: 0x00FF ------------------------------------------------------------------------------- Address 05: Acc/Start Auth. Labels: 4F0-910-852.clb Part No SW: 4F0 910 852 B HW: 4F0 905 852 D Component: FBSAUDIC6 ELV H05 0100 Revision: 00H05000 Serial number: 10602601270337 Coding: 0000017 Shop #: WSC 02323 785 00200 VCID: 2541E29EECA39A36C75-8070 Subsystem 1 - Part No: 4F0 910 132 D Component: FBSAUDIC6 EZS H03 0020 Subsystem 2 - Part No: 4F0 910 220 D Component: FBSAUDIC6 IDG H01 0040 2 Faults Found: 01332 - Door Control Module; Passenger Side (J387) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 2 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:15:05 01333 - Door Control Module; Rear Left (J388) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 2 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:15:05 ------------------------------------------------------------------------------- Address 08: Auto HVAC Labels: 4F0-910-043.lbl Part No SW: 4F0 910 043 B HW: 4F2 820 043 T Component: KLIMABETAETIGUNGH30 0070 Revision: 00000073 Serial number: 00000030418950 Coding: 0001044 Shop #: WSC 02325 785 00200 VCID: 1D31CA7EC4F352F69F5-8048 No fault code found. ------------------------------------------------------------------------------- Address 09: Cent. Elect. Labels: 4F0-910-279.lbl Part No SW: 4F0 910 279 N HW: 4F0 907 279 Component: ILM Fahrer H22 0320 Revision: 00000000 Serial number: 4F0907279 Coding: 0003121 Shop #: WSC 02256 785 00200 VCID: 34670FDA5779F3BE40B-8061 Subsystem 1 - Part No: 4F2 910 113 C Labels: 1KX-955-119.CLB Component: Wischer AudiC6 H10 0040 Coding: 00056595 Shop #: WSC 02256 Subsystem 2 - Part No: 8K0 910 557 Labels: 8K0-955-559.CLB Component: REGENLICHTSENSORH04 0003 Coding: 00146221 Shop #: WSC 02256 3 Faults Found: 00456 - Control Module for Access and Start Control (J518) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 2 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:06:00 00466 - Control Module for Steering Column Electronics (J527) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 2 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:00:00 00910 - Indicator Lamp for Emergency Flashers (K6) 007 - Short to Ground - Intermittent Freeze Frame: Fault Status: 00100111 Fault Priority: 2 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:01:00 ------------------------------------------------------------------------------- Address 15: Airbags (J234) Labels: 4F0-910-655-10.clb Part No SW: 4F0 910 655 L HW: 4F0 959 655 E Component: Airbag AU1042 H06 0090 Revision: -------- Serial number: 003CH003GCV8 Coding: 30314236303630303033554A305234463053 Shop #: WSC 02323 785 00200 ASAM Dataset: EV_Airba10AURB4 001001 ROD: EV_Airba10AURB4.rod VCID: 306F03CA6B61CF9E243-8065 Crash sensor for side airbag; driver side: Serial number: 3574SRB400008A50C285 Crash sensor for side airbag; passenger side: Serial number: 3584SRB400008A5080F7 Crash sensor for side airbag; rear driver side: Serial number: 35152RB402B838NMNJEJ Crash sensor for side airbag; rear passenger side: Serial number: 35252RB40357V8VHAJQ1 Crash sensor for front airbag; driver side: Serial number: 3554NRB4000048FE1566 Crash sensor for front airbag; passenger side: Serial number: 3564NRB400004911B27W No fault code found. ------------------------------------------------------------------------------- Address 16: Steering wheel Labels: 4F0-910-549.lbl Part No SW: 4F0 910 549 A HW: 4F0 953 549 D Component: J0527 0530 Revision: 00H05000 Serial number: 90025090230026 Coding: 0102041 Shop #: WSC 02323 785 00200 VCID: 275DE89696AF8826F59-8072 Subsystem 1 - Part No: XXXXXXXXXXX Component: E0221 H02 0030 1 Fault Found: 00456 - Control Module for Access and Start Control (J518) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 4 Fault Frequency: 1 Reset counter: 99 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:06:11 ------------------------------------------------------------------------------- Address 17: Instruments (J285) Labels: 4F0-920-xxx-17.clb Part No SW: 4F0 920 951 C HW: 4F0 920 951 C Component: KOMBIINSTR. H06 0135 Revision: 00100000 Serial number: ADT023Y19 Coding: 2F74090502002600010400 Shop #: WSC 02391 823 56573 VCID: 275DE89656AF8826F59-8072 No fault code found. ------------------------------------------------------------------------------- Address 19: CAN Gateway (J533) Labels: 4F0-907-468.clb Part No SW: 4F0 907 468 K HW: 4F0 907 468 F Component: GW-BEM 4CAN-M H06 0025 Revision: 4LA80024 Serial number: 2400L091198464 Coding: 000303 Shop #: WSC 02391 823 56573 VCID: 377D38D6860F18A6659-8062 Subsystem 1 - Part No SW: 8K0 915 181 C HW: 8K0 915 181 C Component: J367-BDM H07 0107 5 Faults Found: 00466 - Control Module for Steering Column Electronics (J527) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 2 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:00:41 Freeze Frame: Bin. Bits: 00000 Voltage: 12.50 V Count: 11 Bin. Bits: 1000 Time: 0.00 s 00456 - Control Module for Access and Start Control (J518) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 2 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:06:11 Freeze Frame: Bin. Bits: 00000 Voltage: 12.40 V Count: 12 Bin. Bits: 1000 Time: 0.00 s 01333 - Door Control Module; Rear Left (J388) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 2 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:15:05 Freeze Frame: Bin. Bits: 00000 Voltage: 12.40 V Count: 12 Bin. Bits: 1000 Time: 0.00 s 01332 - Door Control Module; Passenger Side (J387) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 2 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:15:05 Freeze Frame: Bin. Bits: 00000 Voltage: 12.40 V Count: 12 Bin. Bits: 1000 Time: 0.00 s 02103 - Control Module 2 for Vehicle Electrical System (J520) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 2 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:15:09 Freeze Frame: Bin. Bits: 00000 Voltage: 12.40 V Count: 12 Bin. Bits: 1000 Time: 0.00 s ------------------------------------------------------------------------------- Address 42: Door Elect, Driver (J386) Labels: 4F0-959-793.clb Part No SW: 4F0 959 793 R HW: 8K0 959 793 D Component: TSG FA H11 0250 Revision: Serial number: 0000100694245 Coding: 011C06204041410001 Shop #: WSC 02391 823 56573 VCID: 46834512F1E5712EEEF-8013 2 Faults Found: 01320 - Control Module for Climatronic (J255) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 6 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:00:09 00446 - Function Limitation due to Under-Voltage 000 - - - Intermittent Freeze Frame: Fault Status: 00100000 Fault Priority: 3 Fault Frequency: 2 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:05:56 ------------------------------------------------------------------------------- Address 46: Central Conv. Labels: 4F0-910-289.lbl Part No SW: 4F0 910 289 N HW: 4F0 907 289 N Component: Komfortgeraet H28 0240 Revision: 02400028 Serial number: 01168893990000 Coding: 0131579 Shop #: WSC 02256 785 00200 VCID: 356132DE5C03EAB6775-8060 Subsystem 1 - Part No: 1K0 951 605 C Component: LIN BACKUP HORN H03 1301 Subsystem 2 - Part No: 4F0 910 177 Component: Innenraumueberw.H01 0020 6 Faults Found: 00466 - Control Module for Steering Column Electronics (J527) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 5 Fault Frequency: 1 Reset counter: 98 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 07:15:14 02072 - Control Module for Energy Management (J644) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 5 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:00:00 01320 - Control Module for Climatronic (J255) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 5 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:00:10 01333 - Door Control Module; Rear Left (J388) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 5 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:15:04 01332 - Door Control Module; Passenger Side (J387) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 5 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:15:04 01565 - Luggage Compartment Light (W3) 009 - Open or Short to Ground - Intermittent Freeze Frame: Fault Status: 00101001 Fault Priority: 3 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:16:39 ------------------------------------------------------------------------------- Address 4F: Centr. Electr. II Labels: 4F0-910-280.lbl Part No SW: 4F0 910 280 HW: 4F0 907 280 A Component: ILM Beifahrer H13 0100 Revision: Serial number: 00000000613953 Coding: 0001104 Shop #: WSC 02323 785 00200 VCID: DEB30D72097589EE46F-808B 5 Faults Found: 02072 - Control Module for Energy Management (J644) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 3 Fault Frequency: 2 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:00:00 Freeze Frame: Voltage: 12.500 V Temperature: 77.0癈 00456 - Control Module for Access and Start Control (J518) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 3 Fault Frequency: 2 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:06:00 Freeze Frame: Voltage: 12.500 V Temperature: 77.0癈 01299 - Diagnostic Interface for Data Bus (J533) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 3 Fault Frequency: 2 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:00:00 Freeze Frame: Voltage: 12.500 V Temperature: 77.0癈 01320 - Control Module for Climatronic (J255) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 3 Fault Frequency: 3 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:00:00 Freeze Frame: Voltage: 12.500 V Temperature: 20.0癈 01330 - Central Control Module for Central Convenience (J393) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 3 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:15:00 Freeze Frame: Voltage: 12.400 V Not Recogn. ------------------------------------------------------------------------------- Address 52: Door Elect, Pass. (J387) Labels: 4F0-959-792.clb Part No SW: 4F0 959 792 R HW: 8K0 959 792 D Component: TSG BF H11 0250 Revision: Serial number: 0000100692390 Coding: 011C06204041410001 Shop #: WSC 02391 823 56573 VCID: 4581421ECCE37A36E75-8010 3 Faults Found: 01320 - Control Module for Climatronic (J255) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 6 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:00:10 02115 - Locking Unit for Central Locking 008 - Implausible Signal - Intermittent Freeze Frame: Fault Status: 00101000 Fault Priority: 3 Fault Frequency: 7 Reset counter: 79 Mileage: 150282 km Time Indication: 0 Date: 2019.02.17 Time: 18:50:29 01336 - Data Bus for Comfort System 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 1 Fault Frequency: 1 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:15:04 ------------------------------------------------------------------------------- Address 53: Parking Brake Labels: 4F0-910-801.clb Part No SW: 4F0 910 801 D HW: 4F0 907 801 B Component: EPB CEFC0090 H05 0090 Revision: --H05--- Coding: 0000111 Shop #: WSC 02145 785 00200 VCID: 2149F68EF88B7616BBD-8074 No fault code found. ------------------------------------------------------------------------------- Address 55: Xenon Range Labels: 8P0-907-357.lbl Part No: 8P0 907 357 H Component: Dynamische LWR H02 0010 Revision: 00000001 Serial number: Coding: 0000003 Shop #: WSC 02325 785 00200 VCID: 3F8D50F66E3F20E6AD9-806A No fault code found. ------------------------------------------------------------------------------- Address 56: Radio Cannot be reached ------------------------------------------------------------------------------- Address 5F: Information Electr. Cannot be reached ------------------------------------------------------------------------------- Address 62: Door, Rear Left (J388) Labels: 4F0-959-795.clb Part No SW: 4F0 959 795 M HW: 8K0 959 795 B Component: TSG HL H10 0251 Revision: Serial number: 0000100674412 Coding: 010804204041220001 Shop #: WSC 02391 823 56573 VCID: 43855C06C2D74406C91-8016 No fault code found. ------------------------------------------------------------------------------- Address 72: Door, Rear Right (J389) Labels: 4F0-959-795.clb Part No SW: 4F0 959 795 M HW: 8K0 959 795 B Component: TSG HR H10 0251 Revision: Serial number: 0000100702550 Coding: 010804204041220001 Shop #: WSC 02391 823 56573 VCID: 43855C06C2D74406C91-8016 1 Fault Found: 00446 - Function Limitation due to Under-Voltage 000 - - - Intermittent Freeze Frame: Fault Status: 00100000 Fault Priority: 3 Fault Frequency: 2 Reset counter: 97 Mileage: 151448 km Time Indication: 0 Date: 2008.08.13 Time: 00:05:56 End --------------------------------------------------------------------- Quote Link to comment Share on other sites More sharing options...
tonyfly Posted June 16, 2019 Author Share Posted June 16, 2019 Quote Link to comment Share on other sites More sharing options...
Wood53y Posted August 10, 2019 Share Posted August 10, 2019 You must have an amp and radio receiver in the left hand side of the boot. Quote Link to comment Share on other sites More sharing options...
