Undercarriage/Underbody Images or Diagrams


GiantJay
 Share

Recommended Posts

Hi all

I have been trying to find a reference image of the full underbody of the A4 Avant B9. I seem to only find the saloon/sedan?  can anyone point me in the right direction on this. thanks

Link to comment
Share on other sites


54 minutes ago, GiantJay said:

Hi all

I have been trying to find a reference image of the full underbody of the A4 Avant B9. I seem to only find the saloon/sedan?  can anyone point me in the right direction on this. thanks

Hi I think the diagrams you have looked at will cover that as the estate versions are only a few inches longer which is only a body extension on a current platform, therefore the shielding etc is probably the same, theory/ practise I damaged part of the side shield over the fuel filter mount and bought one s/h from a breakers near me from a saloon that was a year older and it fitted perfectly on my Avant.

Steve.

Link to comment
Share on other sites

Thanks for the reply,

I think you are correct, it also explains the ample diagrams and images of the saloon but zero images of the estate.  My next ask is do you know a resource for the parts listing for the underbody coverings? The type with expandable diagrams and part numbers.   ( I am new to the brand, and the UK so I have had some issues with searching certain terms and finding reliable resources).  I am trying to find the Part numbers for the center and left rear underbody covers is why I ask



Link to comment
Share on other sites

7 minutes ago, GiantJay said:

Thanks for the reply,

I think you are correct, it also explains the ample diagrams and images of the saloon but zero images of the estate.  My next ask is do you know a resource for the parts listing for the underbody coverings? The type with expandable diagrams and part numbers.   ( I am new to the brand, and the UK so I have had some issues with searching certain terms and finding reliable resources).  I am trying to find the Part numbers for the center and left rear underbody covers is why I ask

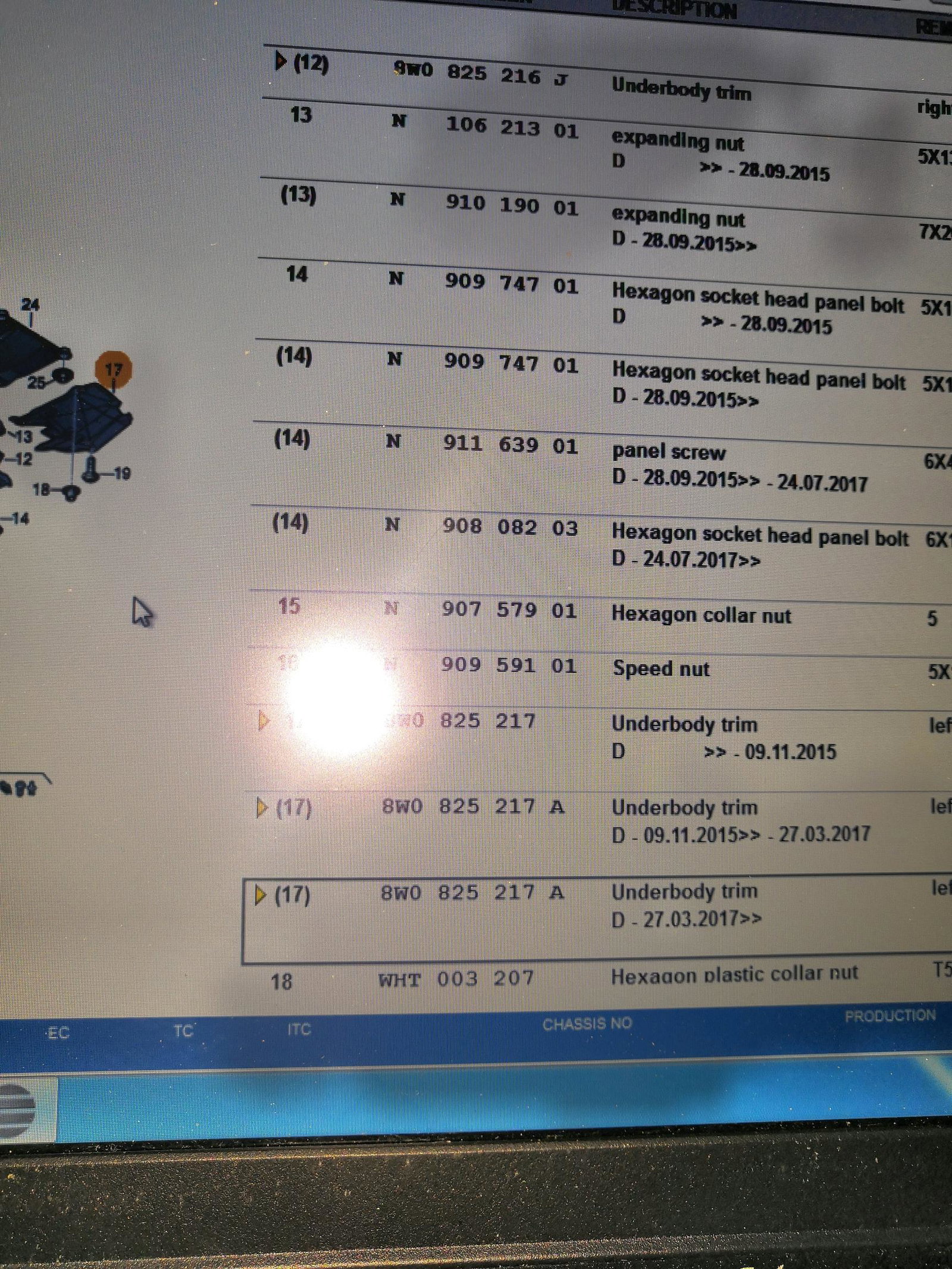

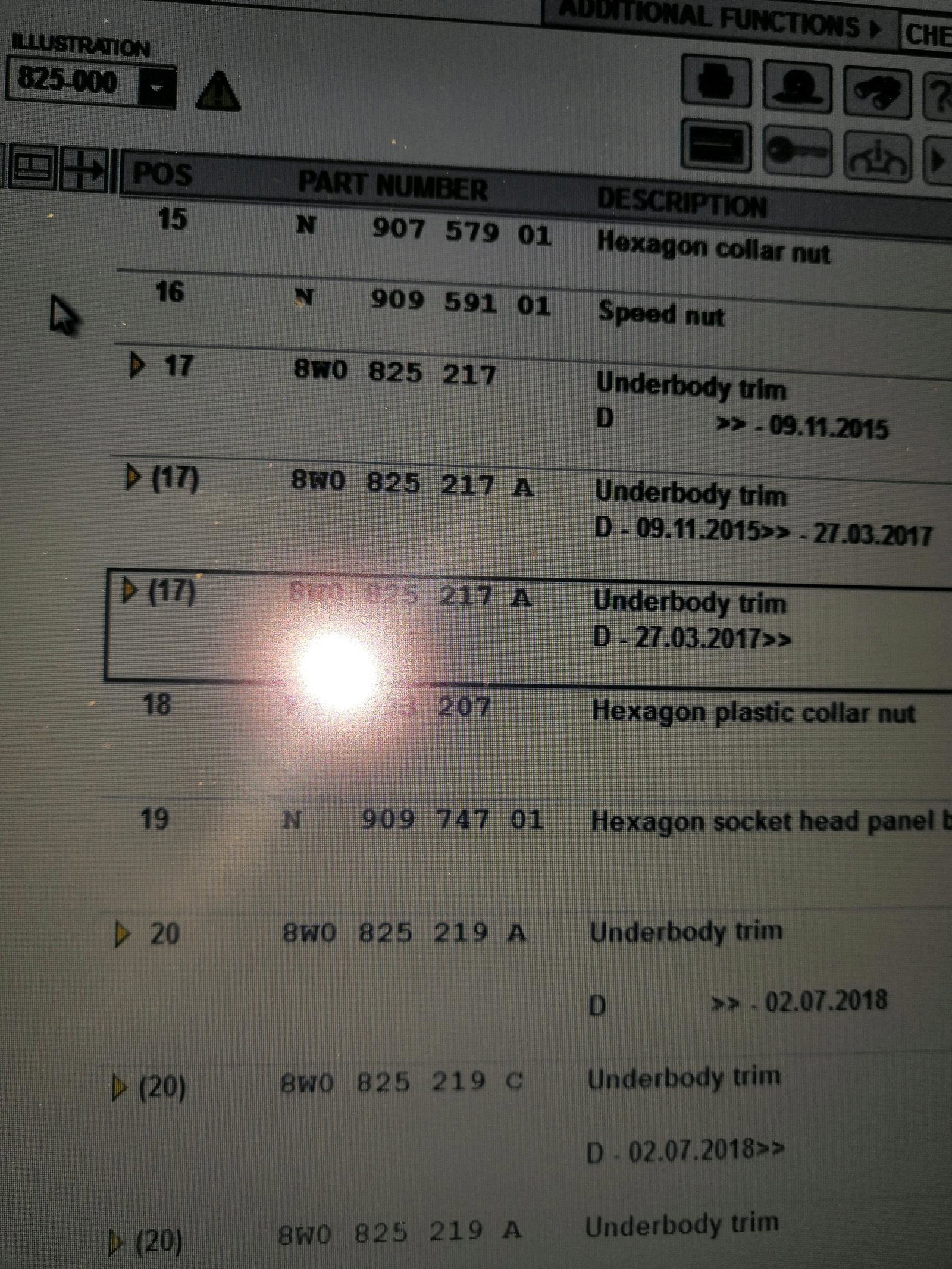

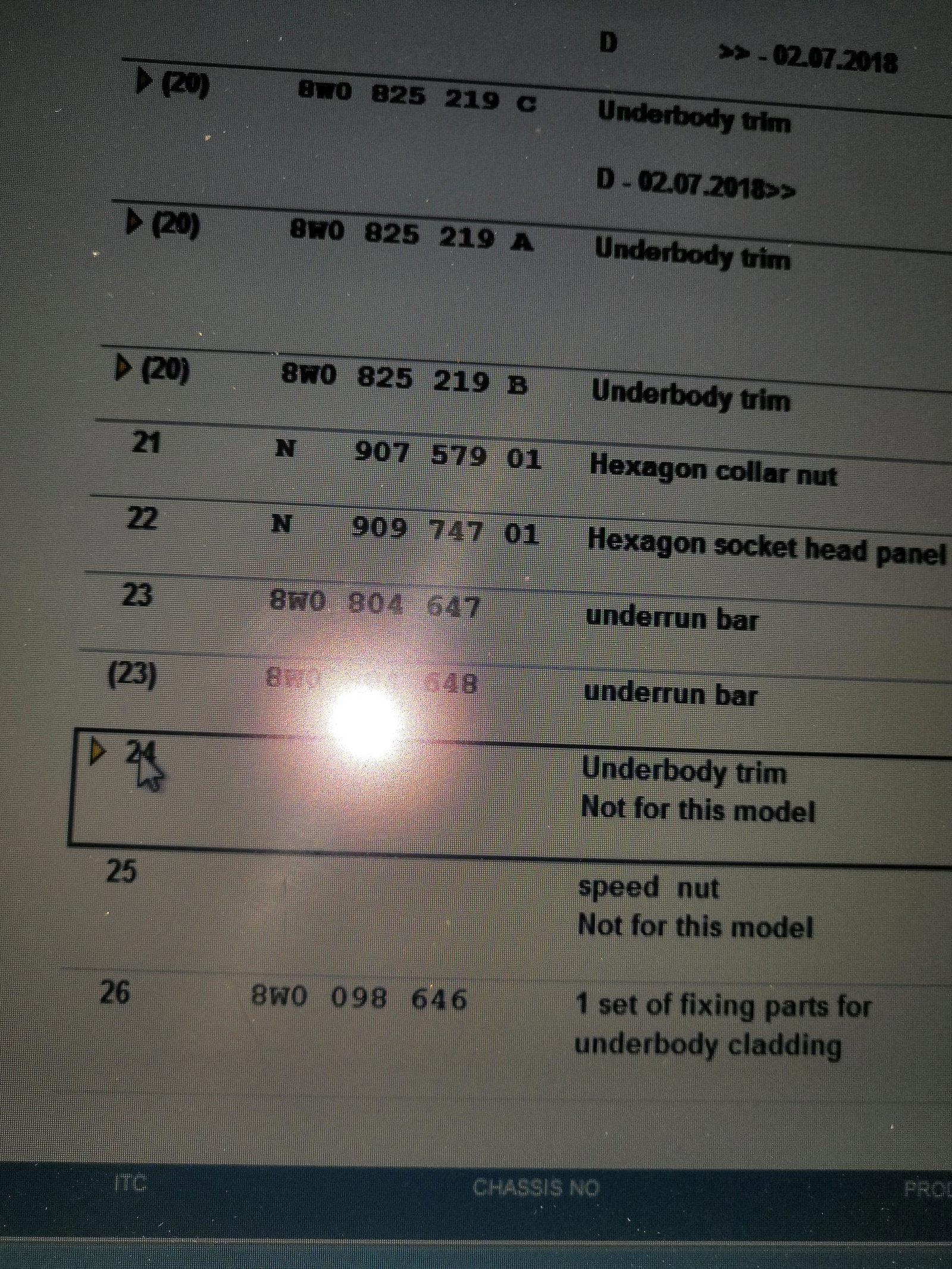

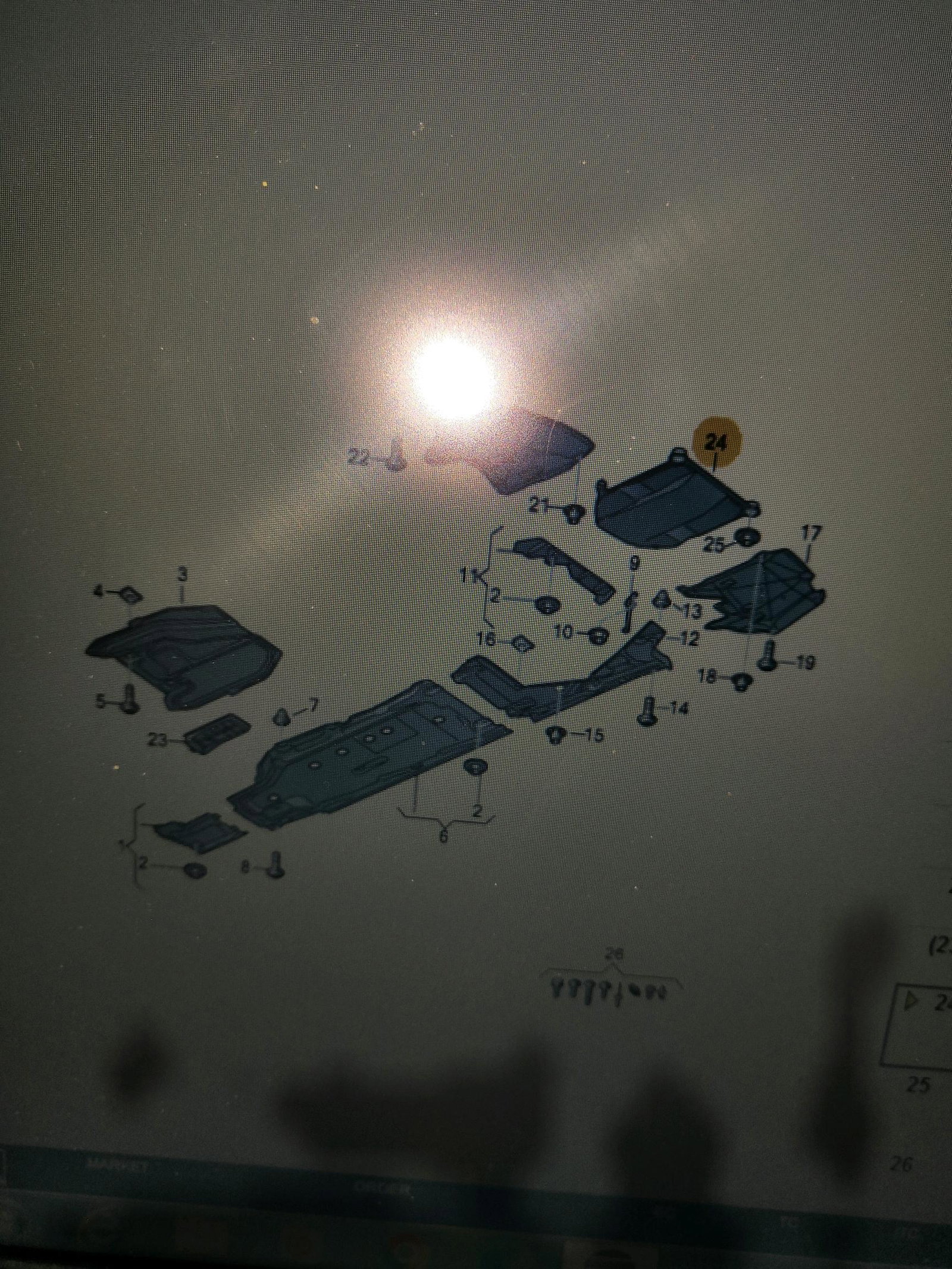

Hi I have a VAG parts system if you can give me your VIN I can have a look on that for the part numbers but in all honesty if you are thinking of going to Audi have a Trauma kit available when they give you the prices, they wanted £160.00 for the part I wanted which I got from a VAG breakers near me who were on eBay for £40, big saving for a little looking/phoning about, have a look on line as there is a good chance someone is breaking the same car or near as damn it.

Steve.

Link to comment
Share on other sites

Something like this might help, a workshop manual. It'll show the diagrams at least but no part numbers. Please note I've given the link as reference. I've never used the site before.

https://www.autorepairmanuals.ws/arm/threads/audi-a4-b9-8w-2015-workshop-manual-electrical-wiring-diagram.76789/

This site recommends one:

https://www.audiworld.com/forums/a4-b9-platform-discussion-212/audi-a4-b9-repair-manual-2986354/

And here's a link that has another one on:

https://www.audi-sport.net/xf/threads/b9-a4-s4-pdf-uk-brochures-b9-a4-owners-manual-pdf.252987/

This might be useful but I've not gone the 187 pics:

https://www.google.co.uk/amp/s/www.motor1.com/news/58149/audi-drops-massive-photo-gallery-with-the-new-a4-186-pics/amp/

2015-Audi-Encounter-Upside-Down-1849-960x480.jpg.28398af3bde9562943b52f08bd57816d.jpg
