Marco315 Posted September 5, 2023 Posted September 5, 2023 Can anyone help me, I have a 2006 3.0tdi Q7 which cut out and won’t start. I’ve scanned the car and found the following faults. I’ve tried replacing the battery, high pressure fuel pump, injectors and still not getting anywhere. I can see it says the DPF pressure sensor and exhaust gas temp sensor but then there is glow plugs 1-6 all open circuit. To me there seams to just be too many errors for all them things to have failed. Can anyone point me in the right direction??? ------------------------------------------------------------------------------- Address 01: Engine Labels: 059-907-401-ASB.clb Part No SW: 4L0 910 401 K HW: 4L0 907 401 Component: 3.0L V6TDI G000AG 0030 Revision: --H04--- Serial number: XXXXXXXXXXXXXX Coding: 0011779 Shop #: WSC 00707 204 182212 VCID: 2A5BB7AF85FF20DBBD-807E 8 Faults Found: 009301 - Diesel Particle Filter; Differential Pressure Sensor P2455 - 001 - Short to Plus Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:38:19 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Temperature: 893.2°C Temperature: 165.2°C (no units): 0.0 Absolute Pres.: 81.6 mbar 009258 - Exhaust Gas Temperature Sensor; B1 S3 P242A - 000 - Malfunction Freeze Frame: Fault Status: 01100000 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:38:19 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Temperature: 893.2°C Temperature: 554.6°C (no units): 0.0 Temperature: 15.3°C 005658 - Glowplug for Cylinder 1 (Q10) P161A - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005659 - Glowplug for Cylinder 2 (Q11) P161B - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005660 - Glowplug for Cylinder 3 (Q12) P161C - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005661 - Glowplug for Cylinder 4 (Q13) P161D - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005662 - Glowplug for Cylinder 5 (Q15) P161E - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005663 - Glowplug for Cylinder 6 (Q15) P161F - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C Readiness: 1 2 0 0 1 ------------------------------------------------------------------------------- Address 02: Auto Trans Labels: 09D-927-750.clb Part No SW: 09D 927 750 FK HW: 09D 927 750 FK Component: AL 750 6A 0940 Revision: 00H52000 Serial number: Coding: 0000504 Shop #: WSC 31414 790 00001 VCID: 7CF741F73FEB6E6B9F-8028 No fault code found. ------------------------------------------------------------------------------- Address 03: ABS Brakes Labels:. 4L0-910-517-V1.clb Part No SW: 4L0 910 517 A HW: 4L0 614 517 A Component: ESP ALLRAD MK25E1 0130 Revision: 00H21001 Coding: 0038033 Shop #: WSC 31414 790 00001 VCID: 285F4DA79BF312CBAB-807C 1 Fault Found: 01826 - Sensor for Steering Angle (G85); Supply Voltage Terminal 30 000 - - Freeze Frame: Fault Status: 01100000 Fault Priority: 2 Fault Frequency: 1 Reset counter: 63 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:16:31 Freeze Frame: Count: 0 Count: 4353 Count: 297 Count: 43776 ------------------------------------------------------------------------------- Address 05: Acc/Start Auth. Labels:. 4F0-910-852.clb Part No SW: 4F0 910 852 HW: 4F0 905 852 B Component: FBSAUDIC6 ELV H31 0220 Revision: 31050601 Serial number: 10601000473437 Coding: 0000147 Shop #: WSC 00579 210 89301 VCID: 63C51A8BA255B193BE-8036 Subsystem 1 - Part No: 4F0 910 131 E Component: FBSAUDIC6 EZS H45 0080 Subsystem 2 - Part No: 4F0 910 220 D Component: FBSAUDIC6 IDG H01 0040 No fault code found. ------------------------------------------------------------------------------- Address 07: Control Head Labels: 4L0-910-7xx-07-H.clb Part No SW: 4L0 910 729 S HW: 4E0 035 729 Component: Interfacebox H43 2830 Revision: 00000000 Serial number: 386GV067515281 Coding: 0002002 Shop #: WSC 31414 790 00001 VCID: 3F8DF6FB6E7DB573FA-806A Subsystem 1 - Part No: 4L0 910 609 Component: E0380 BedienteilH02 0060 Subsystem 2 - Serial number: 00000000460480 Subsystem 3 - Serial number: 0103.07.060000000100010728ÿ Subsystem 4 - Serial number: 010728ÿ No fault code found. ------------------------------------------------------------------------------- Address 08: Auto HVAC Labels: None Part No SW: 4L0 910 043 HW: 4L0 820 043 F Component: KLIMABETAETIGUNGH05 0040 Revision: 00---008 Serial number: 00000000051235 Coding: 0001046 Shop #: WSC 31414 790 00001 VCID: 61C91083B849A383AC-8034 1 Fault Found: 01592 - Air Quality Sensor (G238) 014 - Defective Freeze Frame: Fault Status: 01101110 Fault Priority: 3 Fault Frequency: 4 Reset counter: 63 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:16:37 Freeze Frame: Temperature: 22.0°C ------------------------------------------------------------------------------- Address 09: Cent. Elect. Labels: 4F0-910-279.lbl Part No SW: 4F0 910 279 K HW: 4F0 907 279 Component: ILM Fahrer H17 0240 Revision: 00000000 Serial number: 4F0907279 Coding: 0011101 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 Subsystem 1 - Part No: 4L2 910 113 Labels: 1KX-955-119.CLB Component: Wischer AU716 H08 0080 Coding: 00064792 Shop #: WSC 31414 Subsystem 2 - Part No: 4E0 910 557 A Labels: 8K0-955-559.CLB Component: REGENLICHTSENSORH13 0090 Coding: 00150059 Shop #: WSC 31414 2 Faults Found: 01493 - Bulb for Blinkers; Front Left (M5) 007 - Short to Ground - Intermittent Freeze Frame: Fault Status: 00100111 Fault Priority: 2 Fault Frequency: 2 Reset counter: 103 Mileage: 179412 km Time Indication: 0 Date: 2006.03.15 Time: 12:20:00 01498 - Bulb for Parking Lamps; Right (M3) 011 - Open Circuit Freeze Frame: Fault Status: 01101011 Fault Priority: 2 Fault Frequency: 1 Reset counter: 63 Mileage: 179412 km Time Indication: 0 Date: 2006.03.15 Time: 12:17:00 ------------------------------------------------------------------------------- Address 0E: Media Player 1 Labels: 4E0-910-111.lbl Part No SW: 4L0 910 111 A HW: 4L0 035 111 Component: CD-Changer H41 0100 Revision: 00000000 Serial number: AUZ5ZBF3029137 Shop #: WSC 00000 000 00000 VCID: 1E336B7FC9B7DC7BD1-804A No fault code found. ------------------------------------------------------------------------------- Address 15: Airbags Labels: 4L0-910-655.lbl Part No SW: 4L0 910 655 B HW: 4L0 959 655 Component: 31 AIRBAG AUDI8RH38 0120 Revision: 05H38000 Serial number: 0037GD06DEJ5 Coding: 0013105 Shop #: WSC 31414 790 00001 VCID: 2C57B1B78F0B3EEB4F-8078 Subsystem 1 - Serial number: 6332QSME0F433F1DT Subsystem 2 - Serial number: 6342QSME0F3035215 Subsystem 3 - Serial number: 6352QSME0F31146FM Subsystem 4 - Serial number: 6362QSME1241403D6 Subsystem 5 - Serial number: 63734SME11632061L Subsystem 6 - Serial number: 63834SME116D2239$ No fault code found. ------------------------------------------------------------------------------- Address 16: Steering wheel Labels: 4F0-910-549.lbl Part No SW: 4F0 910 549 HW: 4F0 953 549 A Component: Lenksäulenmodul H08 0230 Revision: 00H08000 Serial number: 90054061950102 Coding: 0102142 Shop #: WSC 31414 790 00001 VCID: 66C3039F5167C4BB59-8032 Subsystem 1 - Part No: XXXXXXXXXXX Component: Lenkradmodul H07 0090 No fault code found. ------------------------------------------------------------------------------- Address 17: Instruments Labels: 4L0-910-xxx-17.lbl Part No SW: 4F0 910 930 C HW: 4L0 920 980 G Component: KOMBIINSTR. M73 H17 0110 Revision: 00300000 Serial number: 5HJ321M76 Coding: 2593443 Shop #: WSC 27313 067 57207 VCID: 23455A8BE2D5F193FE-8076 No fault code found. ------------------------------------------------------------------------------- Address 18: Aux. Heat Labels: 4L0-910-105.lbl Part No SW: 4L0 910 105 HW: 4L0 815 071 C Component: Heizgeraet H07 0060 Revision: 0000000E Serial number: 00000009011043 Coding: 0000002 Shop #: WSC 31414 790 00001 VCID: 60CF1587B343AA8BA3-8034 4 Faults Found: 01330 - Central Control Module for Central Convenience (J393) 004 - No Signal/Communication - Intermittent 00456 - Control Module for Access and Start Control (J518) 004 - No Signal/Communication - Intermittent 02072 - Control Module for Energy Management (J644) 004 - No Signal/Communication - Intermittent 01408 - Under-Voltage Shut-Off (fixed Value) 000 - - - Intermittent ------------------------------------------------------------------------------- Address 19: CAN Gateway Labels:. 4L0-910-468.clb Part No SW: 4L0 910 468 HW: 4L0 907 468 Component: J533__Gateway H06 0040 Revision: 00H06000 Serial number: 0900B06715804B Coding: F55BBE7F302202 Shop #: WSC 80093 222 69422 VCID: 6CD771B74F8BFEEB0F-8038 1 Fault Found: 01771 - Control Module for Headlight Range (J431) 004 - No Signal/Communication Freeze Frame: Fault Status: 01100100 Fault Priority: 2 Fault Frequency: 1 Reset counter: 63 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:16:33 ------------------------------------------------------------------------------- Address 34: Level Control Labels: 4L0-910-553.lbl Part No SW: 4L0 910 553 B HW: 4L0 907 553 Component: LUFTFDR.-CDC H03 7550 Revision: --H03001 Serial number: 15.1528-0095.2 Coding: 0015510 Shop #: WSC 80093 222 69422 VCID: 295948A380F92BC3B4-807C 1 Fault Found: 00446 - Function Limitation due to Under-Voltage 002 - Lower Limit Exceeded - Intermittent Freeze Frame: Fault Status: 00100010 Fault Priority: 4 Fault Frequency: 5 Reset counter: 103 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:16:55 Freeze Frame: Error Code: 13 ------------------------------------------------------------------------------- Address 37: Navigation Labels: 4E0-910-88x-37.lbl Part No SW: 4E0 910 887 Q HW: 4E0 919 887 D Component: MNS ECE H48 0850 Revision: 00000000 Serial number: 399GU067530216 Shop #: WSC 00579 210 08335 VCID: 3B7582EB7A65A953D6-806E No fault code found. ------------------------------------------------------------------------------- Address 42: Door Elect, Driver Labels: 4L0-910-793-42.lbl Part No SW: 4L0 910 793 B HW: 4L0 959 793 B Component: TSG FA H12 0130 Revision: 00-00000 Coding: 0002651 Shop #: WSC 31414 790 00001 VCID: 2F6DA6BBBE1D45F36A-807A No fault code found. ------------------------------------------------------------------------------- Address 46: Central Conv. Labels:. 4L0-910-289.lbl Part No SW: 4L0 910 289 D HW: 4L0 907 289 A Component: Komfortgeraet H05 0020 Revision: 0020 --- Serial number: 01016234250000 Coding: 7348475 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 Subsystem 1 - Part No: 1K0 951 605 C Component: LIN BACKUP HORN H03 1301 Subsystem 2 - Part No: 4F0 910 177 Component: Innenraumueberw.H01 0020 1 Fault Found: 01504 - Bulb for License-Plate Light (X) 009 - Open or Short to Ground Freeze Frame: Fault Status: 01101001 Fault Priority: 3 Fault Frequency: 254 Reset counter: 63 Mileage: 177361 km Time Indication: 0 Date: 2020.11.19 Time: 18:58:40 ------------------------------------------------------------------------------- Address 47: Sound System Labels: 4F0-910-223-AS.lbl Part No SW: 4L0 910 223 B HW: 4L0 035 223 Component: DSP-AU716 H20 0100 Revision: 11S00001 Serial number: 01507060321569 Coding: 0000003 Shop #: WSC 31414 790 00001 VCID: 23455A8BE2D5F193FE-8076 No fault code found. ------------------------------------------------------------------------------- Address 4F: Centr. Electr. II Labels: 4F0-910-280.lbl Part No SW: 4F0 910 280 HW: 4F0 907 280 E Component: ILM Beifahrer H10 0080 Revision: Serial number: 00000000002416 Coding: 0011101 Shop #: WSC 31414 790 00001 VCID: 5EB32B7F89379C7B91-800A No fault code found. ------------------------------------------------------------------------------- Address 52: Door Elect, Pass. Labels: 4L0-910-793-52.lbl Part No SW: 4L0 910 793 B HW: 4L0 959 792 B Component: TSG BF H12 0130 Revision: 00-00000 Coding: 0002651 Shop #: WSC 31414 790 00001 VCID: 2F6DA6BBBE1D45F36A-807A No fault code found. ------------------------------------------------------------------------------- Address 55: Headlight Range Cannot be reached ------------------------------------------------------------------------------- Address 56: Radio Labels: 4E0-910-541.lbl Part No SW: 4E0 910 541 M HW: 4E0 035 541 P Component: TUNER EU/US/RDW H42 0570 Revision: 00000000 Serial number: 388G%067539581 Coding: 0000001 Shop #: WSC 31414 790 00001 VCID: 2A5BB7AF85FF20DBBD-807E No fault code found. ------------------------------------------------------------------------------- Address 61: Battery Regul. Labels: 4F0-910-181.lbl Part No SW: 4L0 910 181 HW: 4L0 915 181 Component: J0644 BEM H12 0530 Revision: -------- Serial number: 00000000029587 Shop #: WSC 80093 222 69422 VCID: 64C71997A75BB6AB47-8030 Subsystem 1 - Part No: 4F0 915 105 D Component: von VA0 2607171435 Coding: 344630393135313035442056413032363037313731343335 Shop #: WSC 31414 790 00001 No fault code found. ------------------------------------------------------------------------------- Address 62: Door, Rear Left Labels: 4L0-910-795.lbl Part No SW: 4L0 910 795 B HW: 4L0 959 795 B Component: TSG HL H21 0050 Coding: 0002058 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 No fault code found. ------------------------------------------------------------------------------- Address 6D: Trunk Elect. Labels: 4L0-910-945.clb Part No SW: 4L0 910 945 HW: 4L0 827 851 A Component: ValeoHeckdeckel H20 0280 Revision: --H20001 Serial number: E5030000B Shop #: WSC 98765 666 38354 VCID: 6CD771B74F8BFEEB0F-8038 Subsystem 1 - Part No: 4L0 910 946 Component: ValeoHeckdeckel H20 0280 Subsystem 2 - Serial number: E5030100B Subsystem 3 - Serial number: RD22.07.06--H20001001C0142ÿ Subsystem 4 - Serial number: 1C0142ÿ 1 Fault Found: 00317 - Rear Lid Control Module (J605) 008 - Implausible Signal - Intermittent Freeze Frame: Fault Status: 00101000 Fault Priority: 3 Fault Frequency: 1 Reset counter: 103 Mileage: 179414 km Time Indication: 0 ------------------------------------------------------------------------------- Address 6F: Centr. Conv. II Labels:. 4L0-910-290.lbl Part No SW: 4L0 910 290 HW: 4L0 907 290 Component: ILM HINTEN 2 H05 0060 Revision: AAH05061 Serial number: 001845080----- Coding: 0000001 Shop #: WSC 31414 790 00001 VCID: 65C10493AC61CFA350-8030 No fault code found. ------------------------------------------------------------------------------- Address 72: Door, Rear Right Labels: 4L0-910-795.lbl Part No SW: 4L0 910 795 B HW: 4L0 959 794 B Component: TSG HR H21 0050 Coding: 0002058 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 No fault code found. ------------------------------------------------------------------------------- Address 76: Park Assist Labels: 4Fx-910-283.lbl Part No SW: 4F0 910 283 G HW: 4F0 919 283 G Component: Parkhilfe 8-Kan H12 0060 Revision: 00H12000 Serial number: 06320620100691 Coding: 0201146 Shop #: WSC 31414 790 00001 VCID: 285F4DA79BF312CBAB-807C No fault code found. End-------------------------(Elapsed Time: 02:51)--------------------------
Magnet Posted September 5, 2023 Posted September 5, 2023 Hello Mark, Regrettably, the back and front of this is that you must have already spent a comparative fortune in trying to sort this out on your own, and effectively got nowhere. Defeatist perhaps, but if it were mine, I would now simply entrust this to a trusted local diesel specialist, and at least get nearer to the root cause, before you throw more good money after bad. Kind regards, Gareth.
Stevey Y Posted September 5, 2023 Posted September 5, 2023 54 minutes ago, Marco315 said: Can anyone help me, I have a 2006 3.0tdi Q7 which cut out and won’t start. I’ve scanned the car and found the following faults. I’ve tried replacing the battery, high pressure fuel pump, injectors and still not getting anywhere. I can see it says the DPF pressure sensor and exhaust gas temp sensor but then there is glow plugs 1-6 all open circuit. To me there seams to just be too many errors for all them things to have failed. Can anyone point me in the right direction??? ------------------------------------------------------------------------------- Address 01: Engine Labels: 059-907-401-ASB.clb Part No SW: 4L0 910 401 K HW: 4L0 907 401 Component: 3.0L V6TDI G000AG 0030 Revision: --H04--- Serial number: XXXXXXXXXXXXXX Coding: 0011779 Shop #: WSC 00707 204 182212 VCID: 2A5BB7AF85FF20DBBD-807E 8 Faults Found: 009301 - Diesel Particle Filter; Differential Pressure Sensor P2455 - 001 - Short to Plus Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:38:19 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Temperature: 893.2°C Temperature: 165.2°C (no units): 0.0 Absolute Pres.: 81.6 mbar 009258 - Exhaust Gas Temperature Sensor; B1 S3 P242A - 000 - Malfunction Freeze Frame: Fault Status: 01100000 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:38:19 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Temperature: 893.2°C Temperature: 554.6°C (no units): 0.0 Temperature: 15.3°C 005658 - Glowplug for Cylinder 1 (Q10) P161A - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005659 - Glowplug for Cylinder 2 (Q11) P161B - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005660 - Glowplug for Cylinder 3 (Q12) P161C - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005661 - Glowplug for Cylinder 4 (Q13) P161D - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005662 - Glowplug for Cylinder 5 (Q15) P161E - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005663 - Glowplug for Cylinder 6 (Q15) P161F - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C Readiness: 1 2 0 0 1 ------------------------------------------------------------------------------- Address 02: Auto Trans Labels: 09D-927-750.clb Part No SW: 09D 927 750 FK HW: 09D 927 750 FK Component: AL 750 6A 0940 Revision: 00H52000 Serial number: Coding: 0000504 Shop #: WSC 31414 790 00001 VCID: 7CF741F73FEB6E6B9F-8028 No fault code found. ------------------------------------------------------------------------------- Address 03: ABS Brakes Labels:. 4L0-910-517-V1.clb Part No SW: 4L0 910 517 A HW: 4L0 614 517 A Component: ESP ALLRAD MK25E1 0130 Revision: 00H21001 Coding: 0038033 Shop #: WSC 31414 790 00001 VCID: 285F4DA79BF312CBAB-807C 1 Fault Found: 01826 - Sensor for Steering Angle (G85); Supply Voltage Terminal 30 000 - - Freeze Frame: Fault Status: 01100000 Fault Priority: 2 Fault Frequency: 1 Reset counter: 63 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:16:31 Freeze Frame: Count: 0 Count: 4353 Count: 297 Count: 43776 ------------------------------------------------------------------------------- Address 05: Acc/Start Auth. Labels:. 4F0-910-852.clb Part No SW: 4F0 910 852 HW: 4F0 905 852 B Component: FBSAUDIC6 ELV H31 0220 Revision: 31050601 Serial number: 10601000473437 Coding: 0000147 Shop #: WSC 00579 210 89301 VCID: 63C51A8BA255B193BE-8036 Subsystem 1 - Part No: 4F0 910 131 E Component: FBSAUDIC6 EZS H45 0080 Subsystem 2 - Part No: 4F0 910 220 D Component: FBSAUDIC6 IDG H01 0040 No fault code found. ------------------------------------------------------------------------------- Address 07: Control Head Labels: 4L0-910-7xx-07-H.clb Part No SW: 4L0 910 729 S HW: 4E0 035 729 Component: Interfacebox H43 2830 Revision: 00000000 Serial number: 386GV067515281 Coding: 0002002 Shop #: WSC 31414 790 00001 VCID: 3F8DF6FB6E7DB573FA-806A Subsystem 1 - Part No: 4L0 910 609 Component: E0380 BedienteilH02 0060 Subsystem 2 - Serial number: 00000000460480 Subsystem 3 - Serial number: 0103.07.060000000100010728ÿ Subsystem 4 - Serial number: 010728ÿ No fault code found. ------------------------------------------------------------------------------- Address 08: Auto HVAC Labels: None Part No SW: 4L0 910 043 HW: 4L0 820 043 F Component: KLIMABETAETIGUNGH05 0040 Revision: 00---008 Serial number: 00000000051235 Coding: 0001046 Shop #: WSC 31414 790 00001 VCID: 61C91083B849A383AC-8034 1 Fault Found: 01592 - Air Quality Sensor (G238) 014 - Defective Freeze Frame: Fault Status: 01101110 Fault Priority: 3 Fault Frequency: 4 Reset counter: 63 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:16:37 Freeze Frame: Temperature: 22.0°C ------------------------------------------------------------------------------- Address 09: Cent. Elect. Labels: 4F0-910-279.lbl Part No SW: 4F0 910 279 K HW: 4F0 907 279 Component: ILM Fahrer H17 0240 Revision: 00000000 Serial number: 4F0907279 Coding: 0011101 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 Subsystem 1 - Part No: 4L2 910 113 Labels: 1KX-955-119.CLB Component: Wischer AU716 H08 0080 Coding: 00064792 Shop #: WSC 31414 Subsystem 2 - Part No: 4E0 910 557 A Labels: 8K0-955-559.CLB Component: REGENLICHTSENSORH13 0090 Coding: 00150059 Shop #: WSC 31414 2 Faults Found: 01493 - Bulb for Blinkers; Front Left (M5) 007 - Short to Ground - Intermittent Freeze Frame: Fault Status: 00100111 Fault Priority: 2 Fault Frequency: 2 Reset counter: 103 Mileage: 179412 km Time Indication: 0 Date: 2006.03.15 Time: 12:20:00 01498 - Bulb for Parking Lamps; Right (M3) 011 - Open Circuit Freeze Frame: Fault Status: 01101011 Fault Priority: 2 Fault Frequency: 1 Reset counter: 63 Mileage: 179412 km Time Indication: 0 Date: 2006.03.15 Time: 12:17:00 ------------------------------------------------------------------------------- Address 0E: Media Player 1 Labels: 4E0-910-111.lbl Part No SW: 4L0 910 111 A HW: 4L0 035 111 Component: CD-Changer H41 0100 Revision: 00000000 Serial number: AUZ5ZBF3029137 Shop #: WSC 00000 000 00000 VCID: 1E336B7FC9B7DC7BD1-804A No fault code found. ------------------------------------------------------------------------------- Address 15: Airbags Labels: 4L0-910-655.lbl Part No SW: 4L0 910 655 B HW: 4L0 959 655 Component: 31 AIRBAG AUDI8RH38 0120 Revision: 05H38000 Serial number: 0037GD06DEJ5 Coding: 0013105 Shop #: WSC 31414 790 00001 VCID: 2C57B1B78F0B3EEB4F-8078 Subsystem 1 - Serial number: 6332QSME0F433F1DT Subsystem 2 - Serial number: 6342QSME0F3035215 Subsystem 3 - Serial number: 6352QSME0F31146FM Subsystem 4 - Serial number: 6362QSME1241403D6 Subsystem 5 - Serial number: 63734SME11632061L Subsystem 6 - Serial number: 63834SME116D2239$ No fault code found. ------------------------------------------------------------------------------- Address 16: Steering wheel Labels: 4F0-910-549.lbl Part No SW: 4F0 910 549 HW: 4F0 953 549 A Component: Lenksäulenmodul H08 0230 Revision: 00H08000 Serial number: 90054061950102 Coding: 0102142 Shop #: WSC 31414 790 00001 VCID: 66C3039F5167C4BB59-8032 Subsystem 1 - Part No: XXXXXXXXXXX Component: Lenkradmodul H07 0090 No fault code found. ------------------------------------------------------------------------------- Address 17: Instruments Labels: 4L0-910-xxx-17.lbl Part No SW: 4F0 910 930 C HW: 4L0 920 980 G Component: KOMBIINSTR. M73 H17 0110 Revision: 00300000 Serial number: 5HJ321M76 Coding: 2593443 Shop #: WSC 27313 067 57207 VCID: 23455A8BE2D5F193FE-8076 No fault code found. ------------------------------------------------------------------------------- Address 18: Aux. Heat Labels: 4L0-910-105.lbl Part No SW: 4L0 910 105 HW: 4L0 815 071 C Component: Heizgeraet H07 0060 Revision: 0000000E Serial number: 00000009011043 Coding: 0000002 Shop #: WSC 31414 790 00001 VCID: 60CF1587B343AA8BA3-8034 4 Faults Found: 01330 - Central Control Module for Central Convenience (J393) 004 - No Signal/Communication - Intermittent 00456 - Control Module for Access and Start Control (J518) 004 - No Signal/Communication - Intermittent 02072 - Control Module for Energy Management (J644) 004 - No Signal/Communication - Intermittent 01408 - Under-Voltage Shut-Off (fixed Value) 000 - - - Intermittent ------------------------------------------------------------------------------- Address 19: CAN Gateway Labels:. 4L0-910-468.clb Part No SW: 4L0 910 468 HW: 4L0 907 468 Component: J533__Gateway H06 0040 Revision: 00H06000 Serial number: 0900B06715804B Coding: F55BBE7F302202 Shop #: WSC 80093 222 69422 VCID: 6CD771B74F8BFEEB0F-8038 1 Fault Found: 01771 - Control Module for Headlight Range (J431) 004 - No Signal/Communication Freeze Frame: Fault Status: 01100100 Fault Priority: 2 Fault Frequency: 1 Reset counter: 63 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:16:33 ------------------------------------------------------------------------------- Address 34: Level Control Labels: 4L0-910-553.lbl Part No SW: 4L0 910 553 B HW: 4L0 907 553 Component: LUFTFDR.-CDC H03 7550 Revision: --H03001 Serial number: 15.1528-0095.2 Coding: 0015510 Shop #: WSC 80093 222 69422 VCID: 295948A380F92BC3B4-807C 1 Fault Found: 00446 - Function Limitation due to Under-Voltage 002 - Lower Limit Exceeded - Intermittent Freeze Frame: Fault Status: 00100010 Fault Priority: 4 Fault Frequency: 5 Reset counter: 103 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:16:55 Freeze Frame: Error Code: 13 ------------------------------------------------------------------------------- Address 37: Navigation Labels: 4E0-910-88x-37.lbl Part No SW: 4E0 910 887 Q HW: 4E0 919 887 D Component: MNS ECE H48 0850 Revision: 00000000 Serial number: 399GU067530216 Shop #: WSC 00579 210 08335 VCID: 3B7582EB7A65A953D6-806E No fault code found. ------------------------------------------------------------------------------- Address 42: Door Elect, Driver Labels: 4L0-910-793-42.lbl Part No SW: 4L0 910 793 B HW: 4L0 959 793 B Component: TSG FA H12 0130 Revision: 00-00000 Coding: 0002651 Shop #: WSC 31414 790 00001 VCID: 2F6DA6BBBE1D45F36A-807A No fault code found. ------------------------------------------------------------------------------- Address 46: Central Conv. Labels:. 4L0-910-289.lbl Part No SW: 4L0 910 289 D HW: 4L0 907 289 A Component: Komfortgeraet H05 0020 Revision: 0020 --- Serial number: 01016234250000 Coding: 7348475 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 Subsystem 1 - Part No: 1K0 951 605 C Component: LIN BACKUP HORN H03 1301 Subsystem 2 - Part No: 4F0 910 177 Component: Innenraumueberw.H01 0020 1 Fault Found: 01504 - Bulb for License-Plate Light (X) 009 - Open or Short to Ground Freeze Frame: Fault Status: 01101001 Fault Priority: 3 Fault Frequency: 254 Reset counter: 63 Mileage: 177361 km Time Indication: 0 Date: 2020.11.19 Time: 18:58:40 ------------------------------------------------------------------------------- Address 47: Sound System Labels: 4F0-910-223-AS.lbl Part No SW: 4L0 910 223 B HW: 4L0 035 223 Component: DSP-AU716 H20 0100 Revision: 11S00001 Serial number: 01507060321569 Coding: 0000003 Shop #: WSC 31414 790 00001 VCID: 23455A8BE2D5F193FE-8076 No fault code found. ------------------------------------------------------------------------------- Address 4F: Centr. Electr. II Labels: 4F0-910-280.lbl Part No SW: 4F0 910 280 HW: 4F0 907 280 E Component: ILM Beifahrer H10 0080 Revision: Serial number: 00000000002416 Coding: 0011101 Shop #: WSC 31414 790 00001 VCID: 5EB32B7F89379C7B91-800A No fault code found. ------------------------------------------------------------------------------- Address 52: Door Elect, Pass. Labels: 4L0-910-793-52.lbl Part No SW: 4L0 910 793 B HW: 4L0 959 792 B Component: TSG BF H12 0130 Revision: 00-00000 Coding: 0002651 Shop #: WSC 31414 790 00001 VCID: 2F6DA6BBBE1D45F36A-807A No fault code found. ------------------------------------------------------------------------------- Address 55: Headlight Range Cannot be reached ------------------------------------------------------------------------------- Address 56: Radio Labels: 4E0-910-541.lbl Part No SW: 4E0 910 541 M HW: 4E0 035 541 P Component: TUNER EU/US/RDW H42 0570 Revision: 00000000 Serial number: 388G%067539581 Coding: 0000001 Shop #: WSC 31414 790 00001 VCID: 2A5BB7AF85FF20DBBD-807E No fault code found. ------------------------------------------------------------------------------- Address 61: Battery Regul. Labels: 4F0-910-181.lbl Part No SW: 4L0 910 181 HW: 4L0 915 181 Component: J0644 BEM H12 0530 Revision: -------- Serial number: 00000000029587 Shop #: WSC 80093 222 69422 VCID: 64C71997A75BB6AB47-8030 Subsystem 1 - Part No: 4F0 915 105 D Component: von VA0 2607171435 Coding: 344630393135313035442056413032363037313731343335 Shop #: WSC 31414 790 00001 No fault code found. ------------------------------------------------------------------------------- Address 62: Door, Rear Left Labels: 4L0-910-795.lbl Part No SW: 4L0 910 795 B HW: 4L0 959 795 B Component: TSG HL H21 0050 Coding: 0002058 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 No fault code found. ------------------------------------------------------------------------------- Address 6D: Trunk Elect. Labels: 4L0-910-945.clb Part No SW: 4L0 910 945 HW: 4L0 827 851 A Component: ValeoHeckdeckel H20 0280 Revision: --H20001 Serial number: E5030000B Shop #: WSC 98765 666 38354 VCID: 6CD771B74F8BFEEB0F-8038 Subsystem 1 - Part No: 4L0 910 946 Component: ValeoHeckdeckel H20 0280 Subsystem 2 - Serial number: E5030100B Subsystem 3 - Serial number: RD22.07.06--H20001001C0142ÿ Subsystem 4 - Serial number: 1C0142ÿ 1 Fault Found: 00317 - Rear Lid Control Module (J605) 008 - Implausible Signal - Intermittent Freeze Frame: Fault Status: 00101000 Fault Priority: 3 Fault Frequency: 1 Reset counter: 103 Mileage: 179414 km Time Indication: 0 ------------------------------------------------------------------------------- Address 6F: Centr. Conv. II Labels:. 4L0-910-290.lbl Part No SW: 4L0 910 290 HW: 4L0 907 290 Component: ILM HINTEN 2 H05 0060 Revision: AAH05061 Serial number: 001845080----- Coding: 0000001 Shop #: WSC 31414 790 00001 VCID: 65C10493AC61CFA350-8030 No fault code found. ------------------------------------------------------------------------------- Address 72: Door, Rear Right Labels: 4L0-910-795.lbl Part No SW: 4L0 910 795 B HW: 4L0 959 794 B Component: TSG HR H21 0050 Coding: 0002058 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 No fault code found. ------------------------------------------------------------------------------- Address 76: Park Assist Labels: 4Fx-910-283.lbl Part No SW: 4F0 910 283 G HW: 4F0 919 283 G Component: Parkhilfe 8-Kan H12 0060 Revision: 00H12000 Serial number: 06320620100691 Coding: 0201146 Shop #: WSC 31414 790 00001 VCID: 285F4DA79BF312CBAB-807C No fault code found. End-------------------------(Elapsed Time: 02:51)-------------------------- Hi most of the dates for these fault codes are prehistoric so I would delete the lot I bet they wont return, my guess would be the low pressure fuel pump in the tank as this manifests itself as a high pressure pump issue as the low pressure side is not supplying enough fuel, easy to diagnose as if you get a container with about a litre of fuel and a suitable length of fuel hose and connect the hose to the intake side of the high pressure fuel pump with the container end elevated above the pump it should start if my theory is correct, before cranking give it a squirt of easy start just to get it going so the pump sucks fuel. Steve.
Marco315 Posted September 5, 2023 Author Posted September 5, 2023 Hi, all these faults keep appearing after I have cleared the faults. My thinking was that it’s maybe the DPF that’s blocked stopping the engine from starting so it doesn’t damage it but I just feel there is too many random faults for that to be the issue. I will try the fuel pump tomorrow and see how I get on. It’s annoying because I’ve removed the codes so many times and these just keep reappearing. I got a new ECU made because the old one was saying communication error but I’m unsure if the new ECU is even correct
Marco315 Posted September 5, 2023 Author Posted September 5, 2023 49 minutes ago, Magnet said: Hello Mark, Regrettably, the back and front of this is that you must have already spent a comparative fortune in trying to sort this out on your own, and effectively got nowhere. Defeatist perhaps, but if it were mine, I would now simply entrust this to a trusted local diesel specialist, and at least get nearer to the root cause, before you throw more good money after bad. Kind regards, Gareth. Hi Gareth, I appreciate that and I am tempted. It’s just getting it to a garage and the hill that comes with it. It’s getting to a point where I don’t know if to just cut my losses but I’m the person that really can’t let something go… my mindset is that nothing is impossible and it must be fixable… but at what cost
Magnet Posted September 6, 2023 Posted September 6, 2023 Thanks Mark, Indeed, everything is fixable, and I’ve lost count of the number of times I’ve called upon the assistance of my best friend - Percy Verance! , but there are times when you have to question the logic of throwing money at it in the blind hope that you can fix it. Having said that, I now fear for your wallet by following your guesswork - such as ‘it’s maybe the DPF’. I can only repeat, that I would get this transported to a local diesel specialist, and my (in caps) guess would be that locating the actual fault won’t end up costing you anything like what you have already spent to date. Kind regards, Gareth.

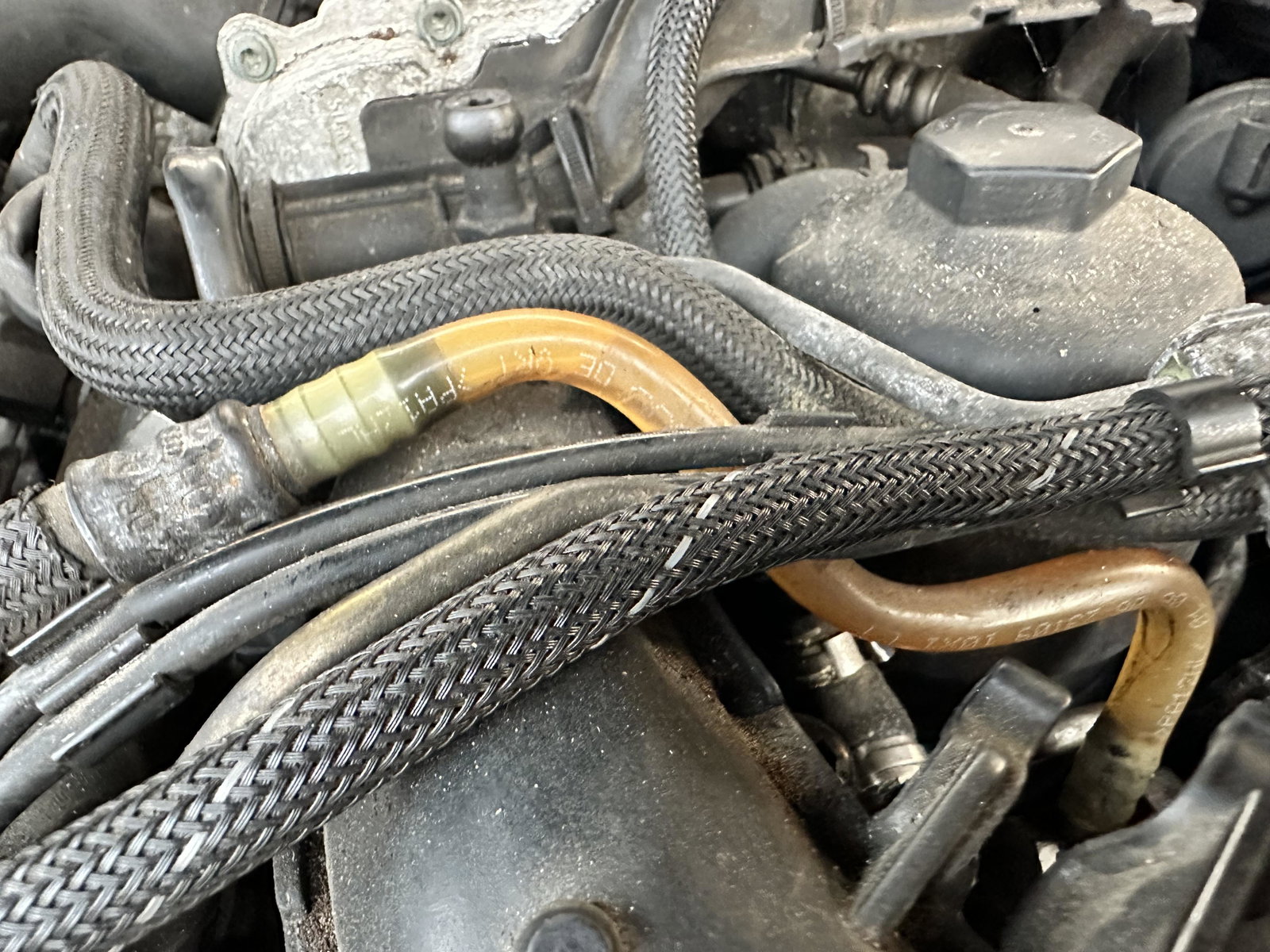

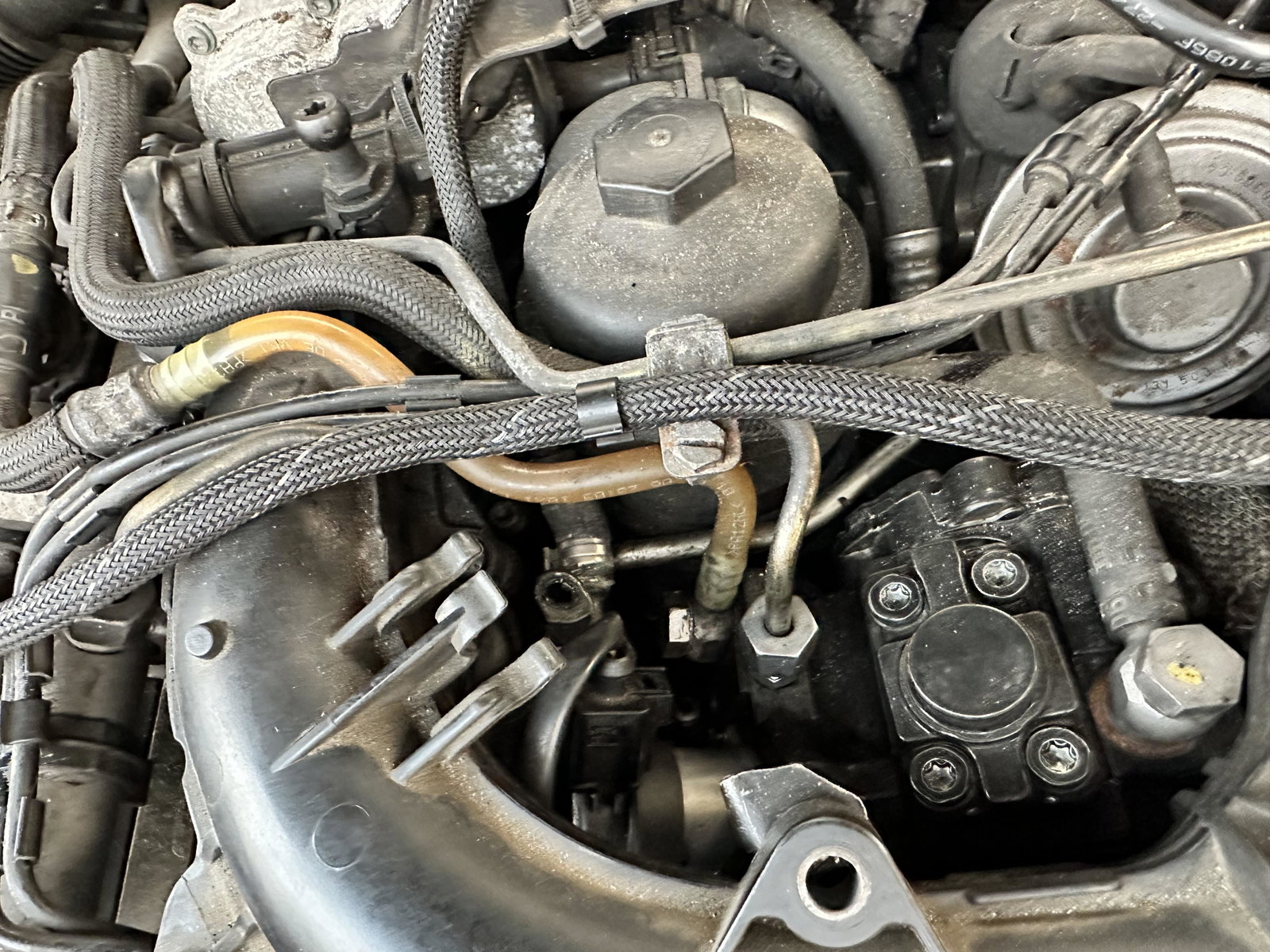

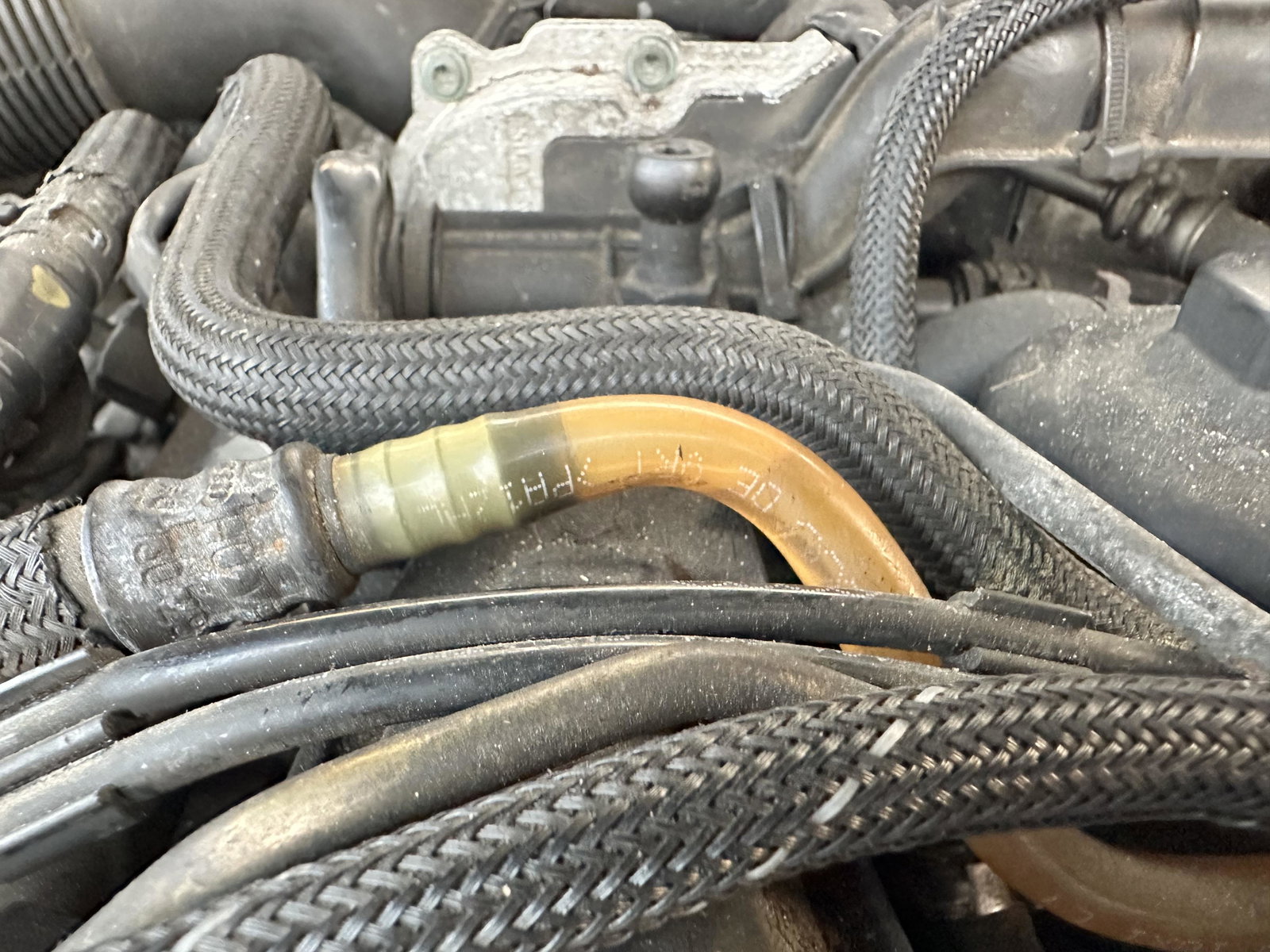

Marco315 Posted September 6, 2023 Author Posted September 6, 2023 Should there be an air bubble in the top of this clear pipe? It goes to the HPFP I think… but when I try and start the car the air bubble moves but the pipe doesn’t fill with fuel as I would expect it too…
Stevey Y Posted September 6, 2023 Posted September 6, 2023 20 minutes ago, Marco315 said: Should there be an air bubble in the top of this clear pipe? It goes to the HPFP I think… but when I try and start the car the air bubble moves but the pipe doesn’t fill with fuel as I would expect it too… Hi I think you will find thats the return to the tank looking at the middle picture I would say the infeed is the large banjo bolt to the right of the the pump, if you can't see the fuel moving through the return pipe that would suggest the lift pump, you will always see air bubbles in the clear pipe as thats the HPFP self bleeding and if the HPFP was getting fuel the bubble would move when cranking. Steve.
Marco315 Posted September 6, 2023 Author Posted September 6, 2023 15 minutes ago, Stevey Y said: Hi I think you will find thats the return to the tank looking at the middle picture I would say the infeed is the large banjo bolt to the right of the the pump, if you can't see the fuel moving through the return pipe that would suggest the lift pump, you will always see air bubbles in the clear pipe as thats the HPFP self bleeding and if the HPFP was getting fuel the bubble would move when cranking. Steve. Thanks for that. I’ve emailed a few garages today but heard nothing back as of yet. Got a funny feeling no one will want to touch it. Just hate to see it going to scrap if I can’t sort it.
Bigdave1230 Posted September 7, 2023 Posted September 7, 2023 Hi did the car cut out when driving or simply not start one morning? Did the glow plug light flash at any point?
snapdragon Posted September 7, 2023 Posted September 7, 2023 (edited) When I had an '06 3.0 TDI, there was no tank in the pump. The lift pump was built into the HPDP. You only need compression and fuel to start a diesel. Can you undo a union on one of the injectors and crank to see if diesel leaks out. Should be a noticeable trickle from each? Can you try a starting fluid such as Bradex Easy Start to see if it fires up for a second? When cranking, can you feel pulses of gas from the exhaust? What about the throttle that closes when you turn of the engine in the air intake, roughly behind the left headlight, made of aluminium - can you visually inspect the flap? When I had a DPF blocked in 2010, a specialist removed it from the ECU but hollowed out the pre-cat only by mistake, so the DPF became totally blocked but would still start easily, just no power once exhaust pressure built up. Edited September 7, 2023 by snapdragon
Marco315 Posted September 7, 2023 Author Posted September 7, 2023 2 hours ago, Bigdave1230 said: Hi did the car cut out when driving or simply not start one morning? Did the glow plug light flash at any point? Hi, I was told that it just cut out and wouldn’t start again. The glow plug light flashes every time I turn the ignition on now
Marco315 Posted September 7, 2023 Author Posted September 7, 2023 1 hour ago, snapdragon said: When I had an '06 3.0 TDI, there was no tank in the pump. The lift pump was built into the HPDP. You only need compression and fuel to start a diesel. Can you undo a union on one of the injectors and crank to see if diesel leaks out. Should be a noticeable trickle from each? Can you try a starting fluid such as Bradex Easy Start to see if it fires up for a second? When cranking, can you feel pulses of gas from the exhaust? What about the throttle that closes when you turn of the engine in the air intake, roughly behind the left headlight, made of aluminium - can you visually inspect the flap? When I had a DPF blocked in 2010, a specialist removed it from the ECU but hollowed out the pre-cat only by mistake, so the DPF became totally blocked but would still start easily, just no power once exhaust pressure built up. It’s had a new throttle body fitted and I tried easy start but doesn’t change it. I will try cracking the injectors tomorrow but starting to loose any hope of it starting now and don’t want to destroy the brand new battery I’ve just fitted
Bigdave1230 Posted September 7, 2023 Posted September 7, 2023 I’m inclined to think it’s possibly an ecu fault. I suspect when you loosen an injector pipe and crank that you’ll get a diesel but might seem a little bubbly making you think it’s drawing air in and lead you into an expensive world of changing components on the fuel system. I would look for a local independent mobile auto electrician to come and test the ecu etc. Should only cost a callout and be less than £100 and might save a lot of chasing. Alternatively you can send the ecu away to be checked/repaired 🤔 there used to be a company on the internet ecutesting.com that charged about £250 to repair/exchange them but if no fault was found then they refunded and sent back but you have to pay about £20 postage. I’ve had a similar fault like this before and it got very expensive to chase and sort. ( it was the ecu in the end but I only found this out after about 2k into it 🤦🏻♂️). Theres a post about it with all the symptoms somewhere earlier in the forum posts.
Marco315 Posted September 8, 2023 Author Posted September 8, 2023 7 hours ago, Bigdave1230 said: I’m inclined to think it’s possibly an ecu fault. I suspect when you loosen an injector pipe and crank that you’ll get a diesel but might seem a little bubbly making you think it’s drawing air in and lead you into an expensive world of changing components on the fuel system. I would look for a local independent mobile auto electrician to come and test the ecu etc. Should only cost a callout and be less than £100 and might save a lot of chasing. Alternatively you can send the ecu away to be checked/repaired 🤔 there used to be a company on the internet ecutesting.com that charged about £250 to repair/exchange them but if no fault was found then they refunded and sent back but you have to pay about £20 postage. I’ve had a similar fault like this before and it got very expensive to chase and sort. ( it was the ecu in the end but I only found this out after about 2k into it 🤦🏻♂️). Theres a post about it with all the symptoms somewhere earlier in the forum posts. Thanks, I think I managed to find the old post and contacted the ECU place that you mentioned (cartech) they want nearly £700 for an ECU replacement and didn’t even respond when I messaged them. Even tried ringing and got no answer. I was only 15mins from the place yesterday and hoped to drop mine off and see if they could test it but they wouldn’t answer the phone so just came home
Bigdave1230 Posted September 8, 2023 Posted September 8, 2023 It was definitely ecutesting.com that I sent mine to not cartech. They confirmed mine was faulty but didn’t have one to exchange it with so refunded me and sent mine back.
