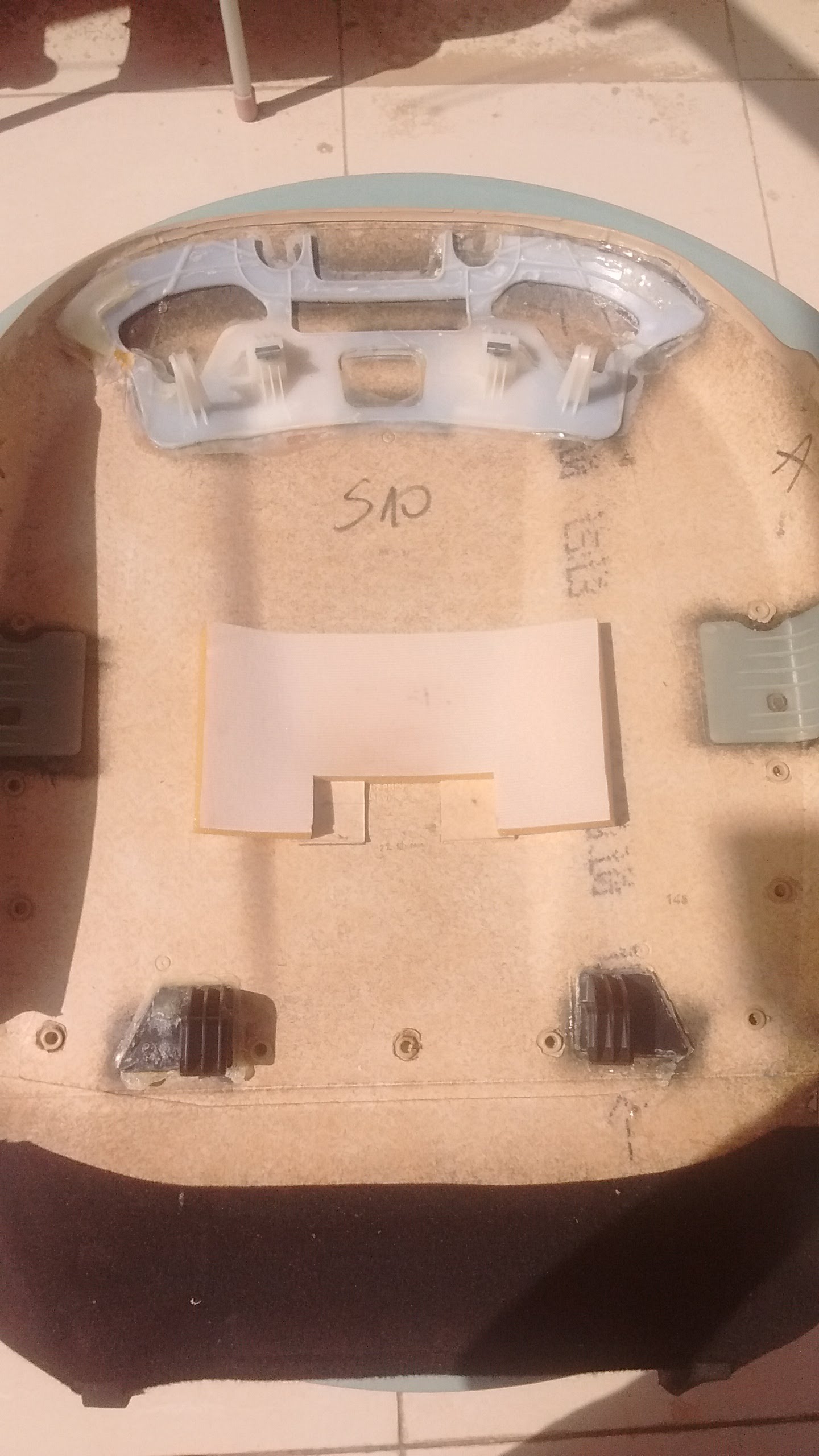

Hello all, Got a 2011 A7 last week, everything appears in good working order with a couple of small issues that need attention. One of those was a "loose" back panel of the passenger seats. Today I decided to sort it out, and as the info floating around the net is either vague or incomplete I decided to snap a few photos and document everything and contribute to community. Panel was a bit loose on the bottom and cracked open on left side so I wanted to remove it to inspect what the problem is and fix it. Looking around I found bits of info, mostly saying that it is difficult to remove without damaging it. I carefully peeked inside through the open end as even though the metal clips that are supposed to hold the top part were not engaged but it was still impossible to pull away from the seat. Finally I figured out that two plastic parts disappearing into the seat must be hooks and managed to disengage them by pulling the panel downwards. Here is the view of the internals of the removed panel: The two plastic black clips on the bottom are known to break, but in this case they were not even engaged, one was completely separated from the panel and the other one partially separated. Luckily both were not broken: Now on to the top part. It was obvious that someone has been in here already and then messed up the reinstall as the metal clips have been bent downwards and did not engage in the appropriate spots. On top of these, there are two plastic hooks that also hold the panel in place, but not snugly agains the seat back. I suspect that the purpose of these hooks is to prevent the panel getting too far back when you pull it back to remove, which would probably break the lower clips Here you can see the bent metal clips and the plastic hooks: Another view: Somewhere I read and advice that trying to disengage the metal clips by pulling back will most likely result in the breakage of the plastic or the panel, and it was suggested to nudge to panel to the right to disengage the clips on the panel side. Looking at the assembly above this will not work, as each clip can only be slid out in opposite direction, and compressed at the same time for this to happen. Luckily (?) I was spared of the actual removal of the metal clips, but from what I have observed if one needs to do it, they will either pop out, or more likely the complete plastic support will separate from the panel. ABS plastic is known not to collaborate too well with most adhesives, including what appears to be a epoxy resin here. Over time it becomes brittle and will easily crack and give up as you can see on the photo below. In any case, it is enough to glue it back in just as I had to do with the lower plastic clips. After it hardens up I just need to straighten up the metal clips and hopefully everything will snap back in place tomorrow. Will keep you posted. Hope someone will find this useful. :)
-
FOR SALE: ECU personally removed from a running 1996 (B5) Audi A4 1.8 20V (engine type: ADR) saloon. Part no.: 8D0907557S I believe this ECU is shared with the VW Passat, Audi A6 and Seat Leon with the same engine. Please check part no. and compatibility before buying. Asking £30 PayPal payment, delivered within the U.K. only. Fast dispatch!
-
Hi all, with the new laws in England starting in November regarding children booster seat having a full back up to the age of 12 , I went to buy a new seat for my 5 year old. purchased a high back seat from Halfords and when trying to fit realised due to the head rests in the Q7 this wasn't going to fit! My wife drove to Audi and asked if they had come across this problem to where they replied, No. sales rep tried fitting a audi kids seat, this also didn't fit. the manager said the headrest can be removed but would take upto 5 hours ( £85 x 5 = sod that! ) anyone else come across this problem?
-
May be not a common problem but I read somewhere that an Audi owner had suffered with a severe rash on his back after purchasing an Audi. I have suffered the same fate. I can't remember where I read the information but the response was generally that the reason could be from the formaldehyde used to manufacture the seats. I have had many new cars and never had this problem. Am I alone? (Picture withheld for modesty reasons!)
-
I have a 2008 2 door couple with the seats move forward when to get a passenger in. Today as I open the seat using the Pull up leaver however this doesn't slide the seat any longer. I guess there is some cable snapped somewhere.. please help!
